| Brand Name: | VIKSTARS |
| Model Number: | VS-SSL-L |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM: VS-SSL-L30 Lamp size: 550*255*90 mm, Solar panel size: 530*350*17mm, Ctn size: 610*155*435mm 1pc/ctn |
| Payment Terms: | T/T |

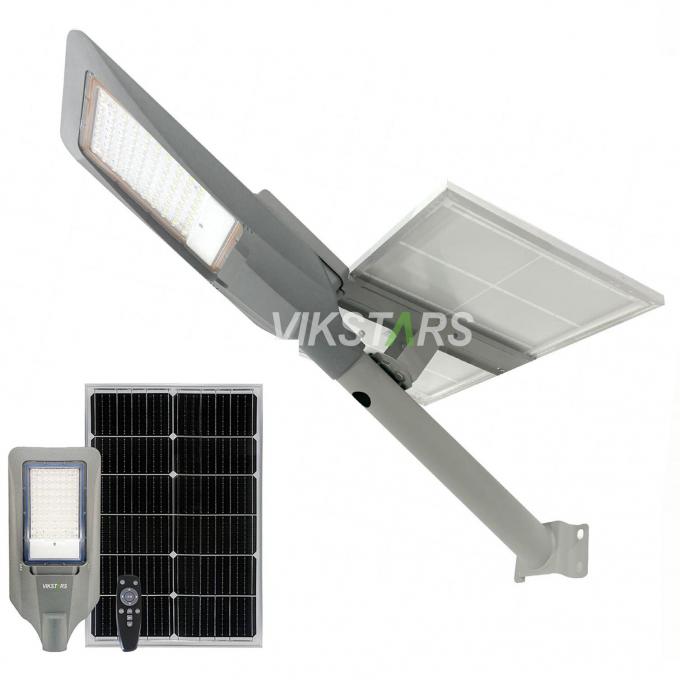

Hottest Sales Solar LED Street Lights 300W 500W 1600W For Project Village Industrial Park Main Street
|
LAMP NAME
|
L Series - Solar Street Lights
|
||||
|
MODEL NO.
|
VS-SSL-L03
|
VS-SSL-L05
|
VS-SSL-L06
|
VS-SSL-L10
|
VS-SSL-L16
|
|
POWER
|
300W Project Solution
|
500W Project Solution
|
600W Project Solution
|
1000W Top-level Solution
|
1600W Top-level Solution
|
|
BATTERY
|
3.2V 24AH Lithium
|
3.2V 36AH Lithium
|
3.2V 60AH Lithium
|
3.2V 100AH Lithium
|
12.8V 60AH Lithium
|
|
SOLAR PANEL
|
Mono 5V 30W
|
Mono 5V 50W
|
Mono 5V 60W
|
Mono 6V 100W
|
Mono 18V 120W
|
|
LUMEN
|
1760lm
|
2880lm
|
3840lm
|
5400lm
|
10800lm
|
|
LED QTY
|
SMD5054*80PCS, 4-chip 1530
|
Brightlux SMD5050*80pcs, 4-chip 1734
|
|||
|
BEAM ANGLE
|
120°
|
||||
|
CCT
|
Cold White
|
||||
|
CHARGE TIME
|
4-6 hours
|
||||
|
LAST TIME
|
16-18 hours / 3-5 Rainy days
|
||||
|
INSTALL HEIGHT
|
4-5m
|
4-6m
|
5-7m
|
6-8m
|
8-10m
|
|
LIGHT AREA
|
100㎡
|
200㎡
|
300㎡
|
400㎡
|
800㎡
|
|
WORK MODE
|
Intelligent Light control + Time Control + Remote Control
|
||||
|
INSTALL WAY |
Pole / Wall / Hug Hoop Installation
(accessories not include hoop, need buy additionally)
|
||||
|
WATERPROOF
|
IP66
|
||||
|
MATERIAL
|
High Quality Aluminum Heat Sink + PC lens / Sand Grey
|
||||
|

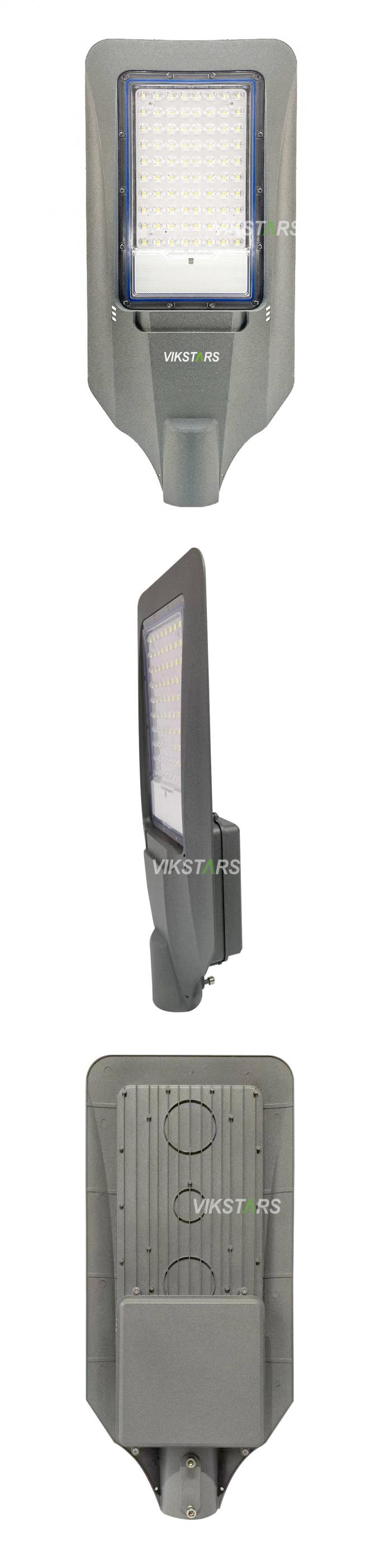

LAMP SIZE
|
550*255*90mm (same size for all series)
|
||||
|

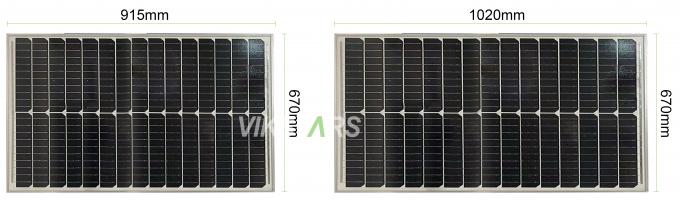

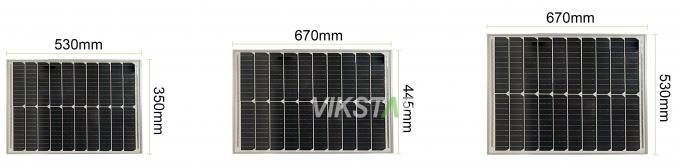

PANEL SIZE
|
530*350*17mm
|
670*445*25mm
|
670*535*25mm
|
670*915*30mm
|
670*1020*30mm
|
|

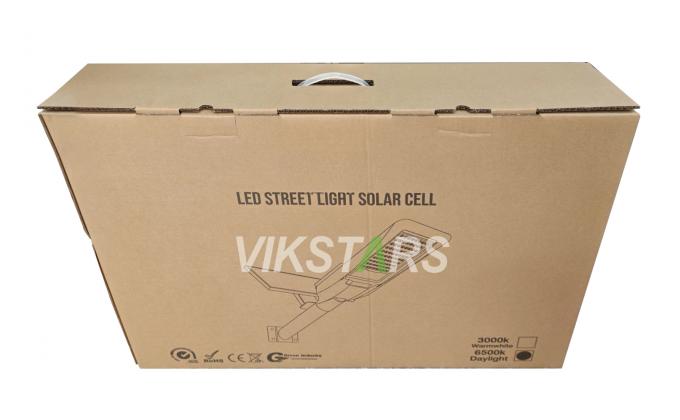

PACKING
|
Integrated Packing (Export Neutral Carton / VIKSTARS Brand / Customizing Packing)
|
Customized According to Projects
|
|||
|
WARRANTY
|
2 Years warranty
|
||||
 |
|
|

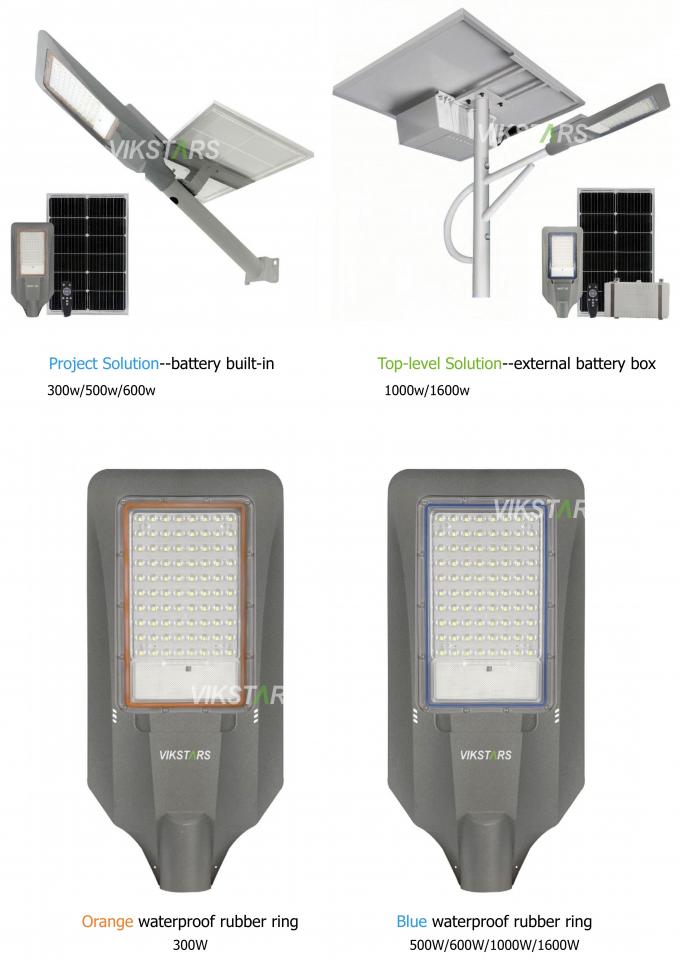

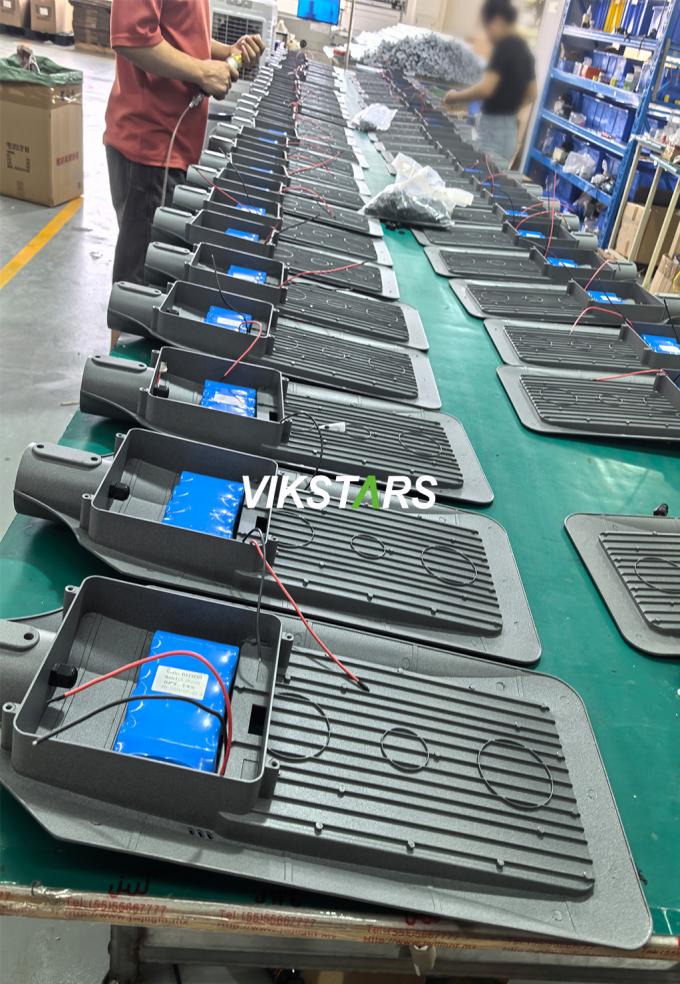

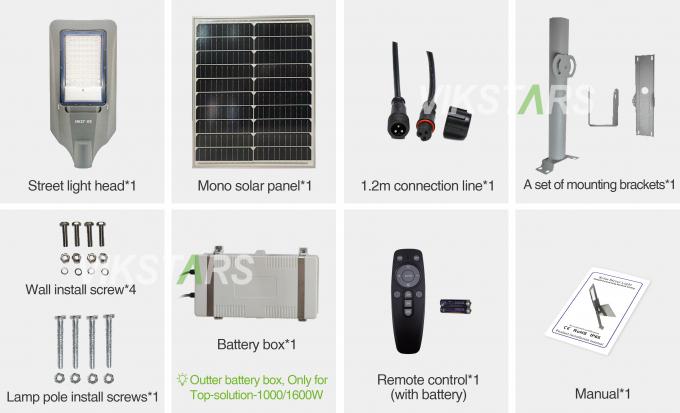

Project Solution--battery built-in
300w/500w/600w
|
Top-level Solution--external battery box |
 |
 |
 |
|

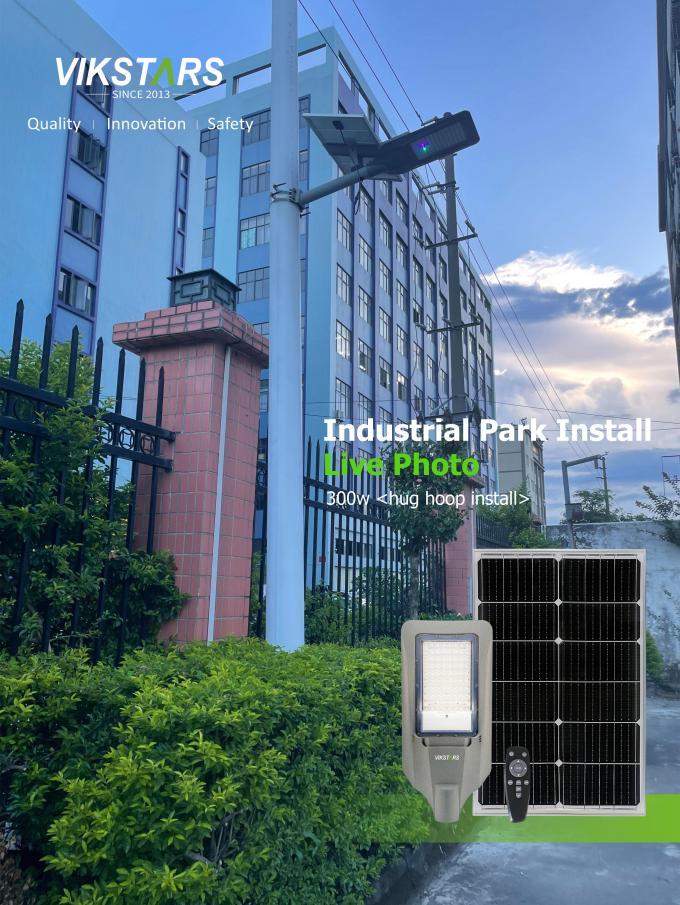

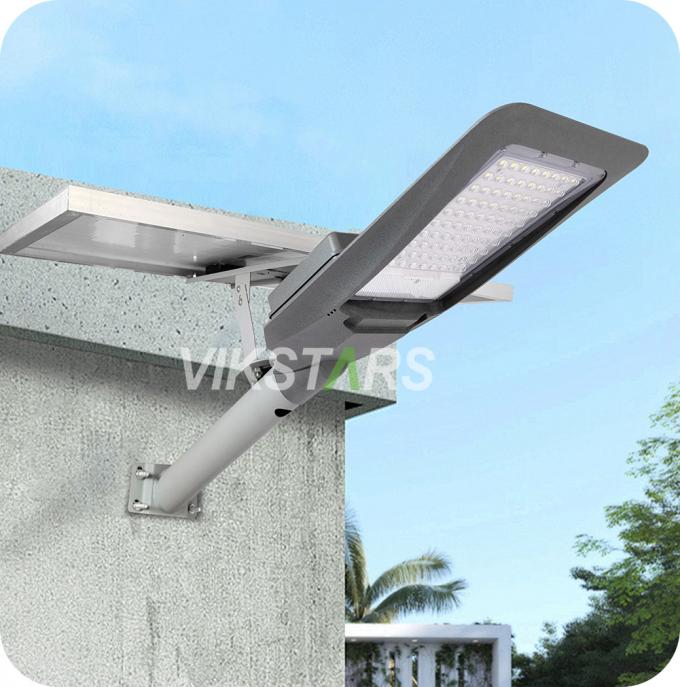

Wall Install |

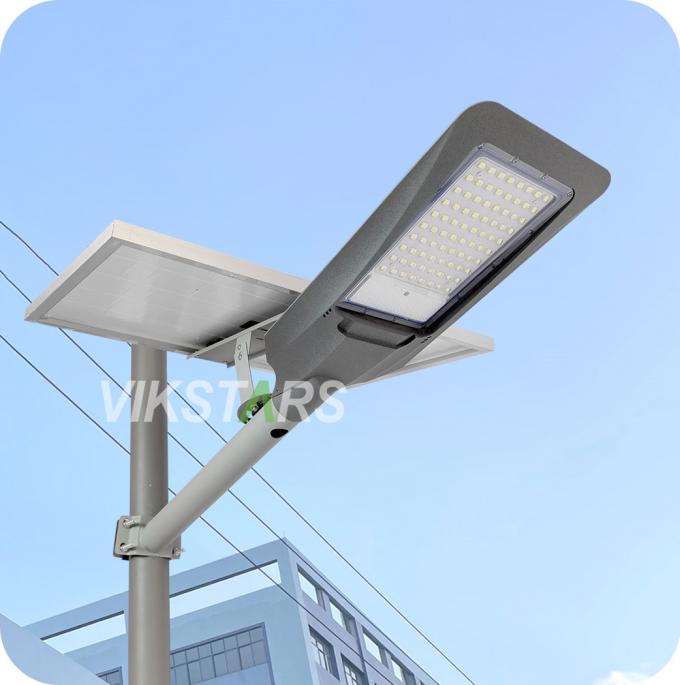

Pole Install |

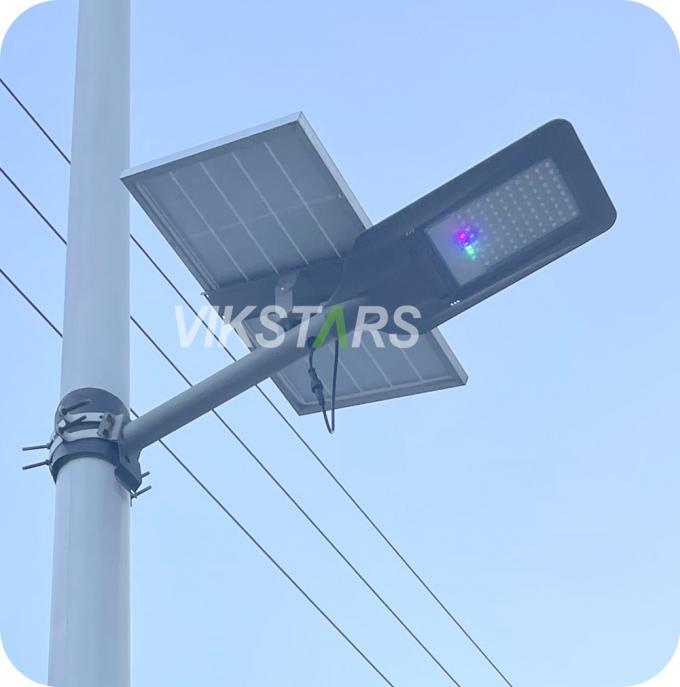

Hug Hoop Install |
 |
||

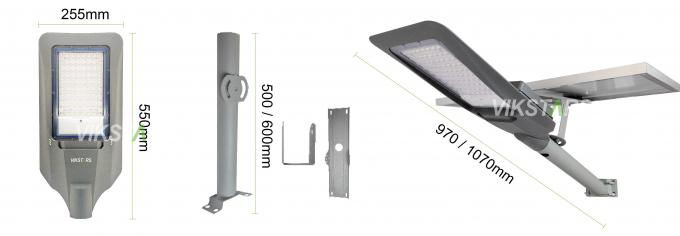

| same size for all watts | 300w: 500mm length
500w: 600mm length
|
300w: total length 970mm
500w: total length 1070mm
|
 |
||
| project solution 300w | project solution 500w | project solution 600w |
 |
|
| top-level solution 1000w solar panel |
top-level solution 1600w solar panel
|
|
Solution
|
Power | Carton Size | pc/ctn |
N.W.
|
Specification |
|
Project Solution
|
300W
|
610*155*435mm
|
1pc/ctn | 5.00kg |

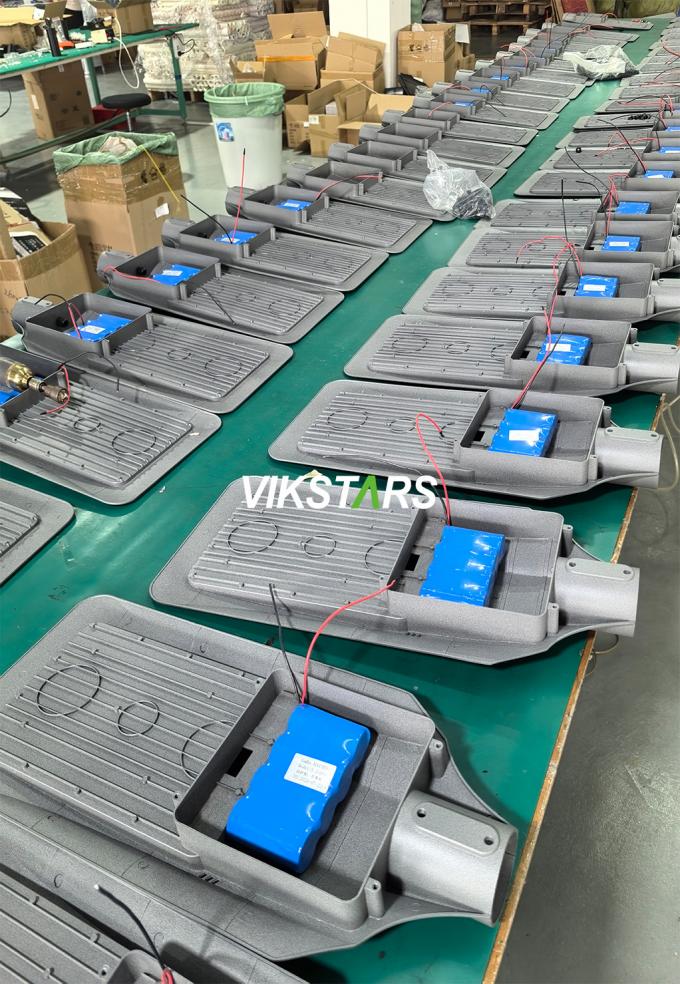

Battery built-in the lamp body, integrated packing
|
| 500W | 720*155*495mm | 1pc/ctn | 6.50kg | ||
|
600W
|
/
|
/
|
/
|
Battery built-in the lamp body, But because of the bigger size solar panel, need customize packing
|
|
|
Top-level Solution
|
1000W
|
/
|
/ | / |
Outter battery box, larger size solar panel, need customize packing according to the project
|
| 1600W | / | / |
/
|

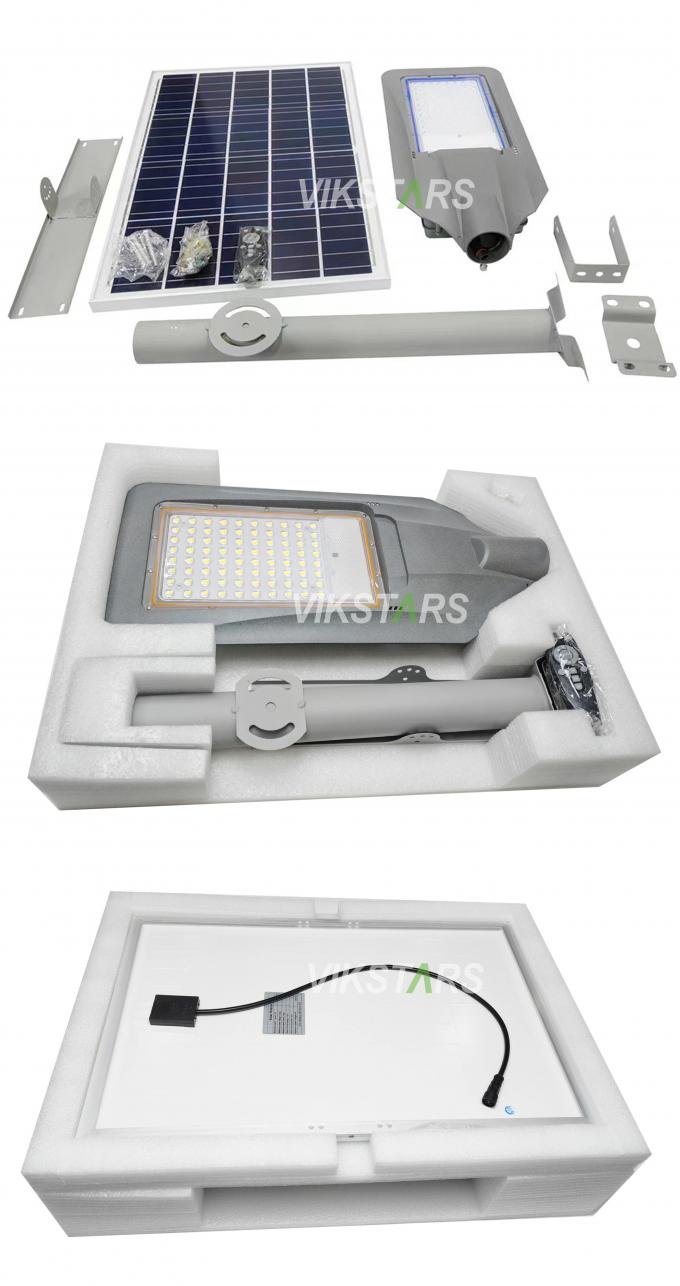

300W/500W - Integrated Packing
600W with larger size solar panel, need to customize packing
|
|
