| Brand Name: | VIKSTARS |
| Model Number: | VS-STL-L |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM:VS-STL-A20 Lamp size: 838*340*118mm, Lamp Carton: 86*36*12cm, 1pc/ctn |
| Payment Terms: | T/T |

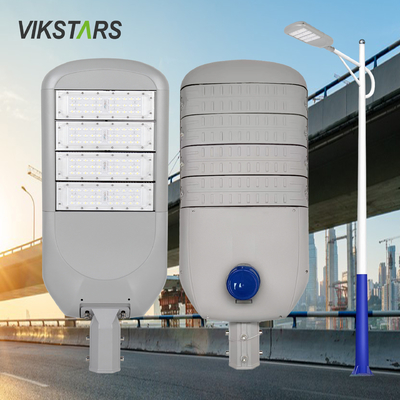

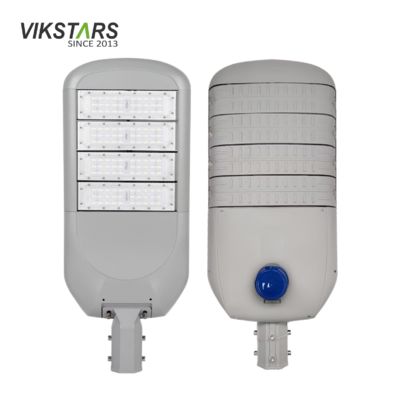

150lm/w Module LED Street Lights 100W 200W 240W For Main Street With Photocell IP66 IK08 Public Lighting Lamps
DELIVERY
| LAMP NAME |
LED STREET LIGHT
|
||||
| MODEL NO. |
VS-STL-A10
|
VS-STL-A15
|
VS-STL-A20
|
VS-STL-A24
|
|

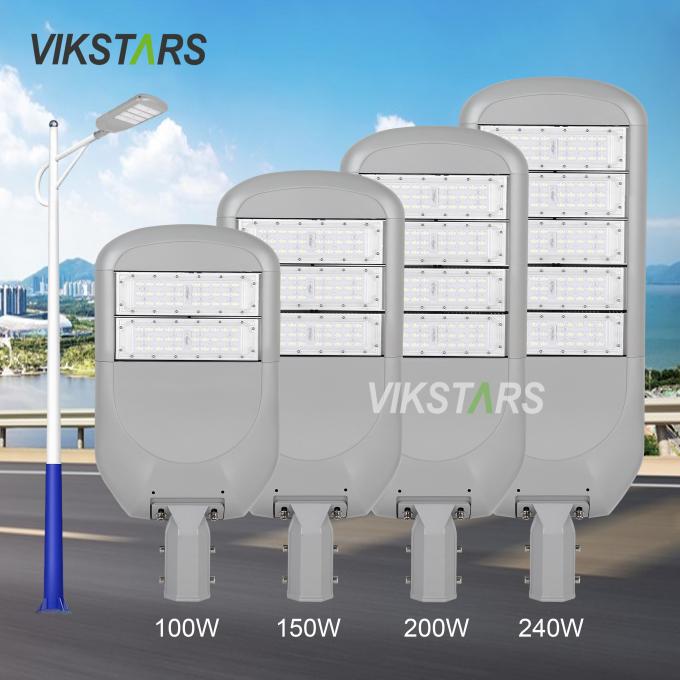

| POWER | 100W | 150W | 200W |
240W
|
|
| INSTALL HEIGHT |
5-6m
|
6-8m
|
8-10m
|
10-12m | |
| LED QTY | 60pcs |
90pcs
|
120pcs |
150pcs
|
|
| BEAM ANGLE |
70*140°
|
||||
| VOLTAGE |
85-265Vac
|
||||
| PF |
＞0.95
|
||||
| CCT |
Default: Cold White (Warm White / Neutral White for option)
|
||||
| C.R.I. | ＞70Ra | ||||
| INSTALL WAY |
Pole / Wall / Hug Hoop Installation
(Accessories not include hoop, need buy additionally)
|
||||
| WATERPROOF |
IP65
|
||||
| MATERIAL |
Die-casting Aluminum Heat Sink + PC lens / Sand Grey
|
||||
| LAMP SIZE |
676*340*118mm
|
757*340*118mm
|
838*340*118mm |
919*340*118mm
|
|
| HOLDER SIZE |
Ø60mm
|
||||
| PACKING | Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing | ||||
|
SOLUTION
|
Project Solution
|
Top-level Solution |
| LEDs TYPE | 3030 | Bridgelux 3030 |
| LUMEN EFFICIENCY |
140lm/w
|
150lm/w |
| DRIVER |
VIKSTARS
Self-Developed Driver
|
VIKSTARS Self-Developed Driver Pro
|
| WARRANTY |
3 Years
|
5 Years
|

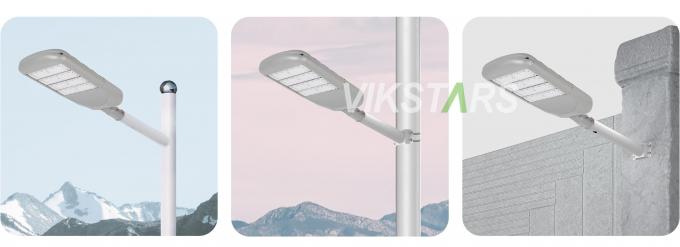

| Pole Install | Hug Hoop Install | Wall Install |
| Power | Carton Size | Qty/ctn |
G.W.
|
Packing
|
| 100W |
700*360*120mm
|
1pc/ctn |
4.80kg
|
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
| 150W |
780*360*120mm
|
1pc/ctn |
5.50kg
|
|
| 200W |
860*360*120mm
|
1pc/ctn |
6.10kg
|
|
|
240W
|
940*360*120mm
|
1pc/ctn
|
6.60kg
|
|
|
