| Brand Name: | VIKSTARS |
| Model Number: | VS-STL-L |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM:VS-STL-L20 Lamp size: 290*665*85mm, Lamp Carton: 73*34*10.5cm, 1pc/ctn |
| Payment Terms: | T/T |

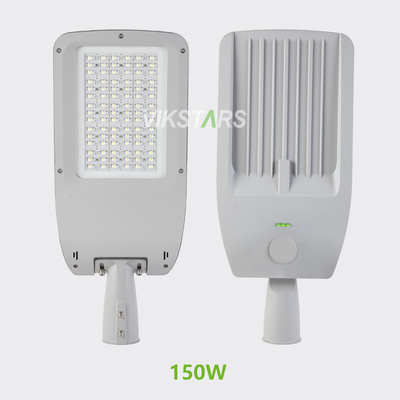

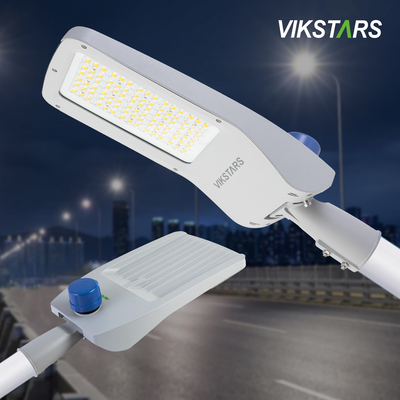

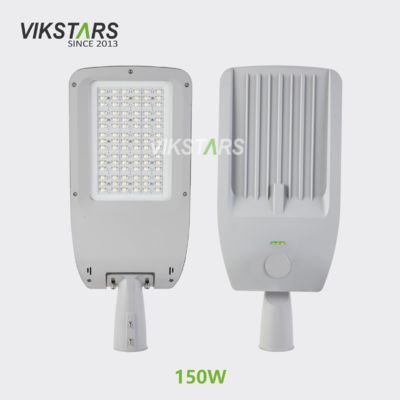

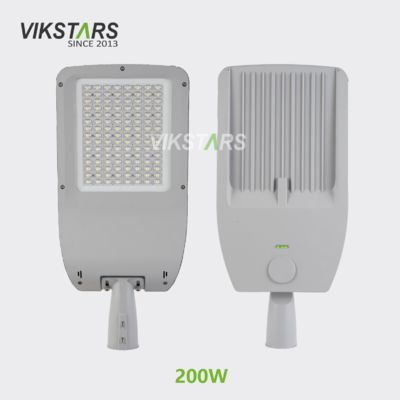

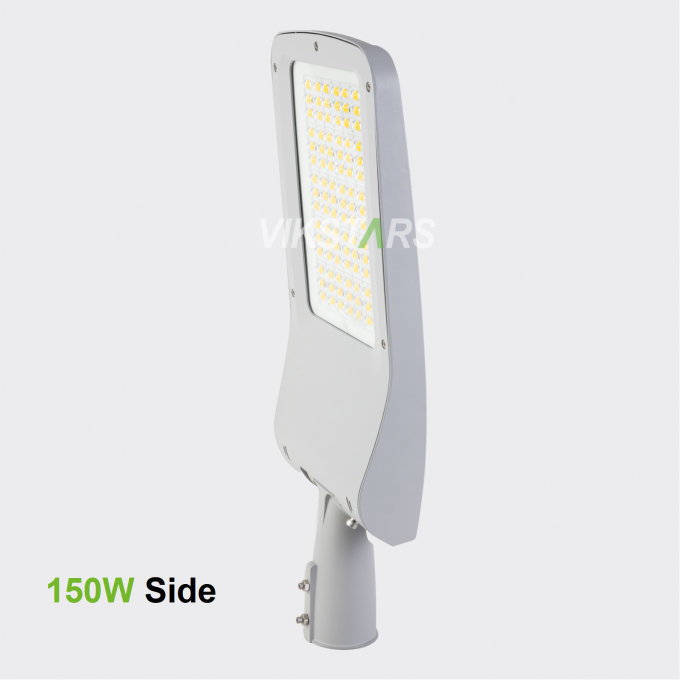

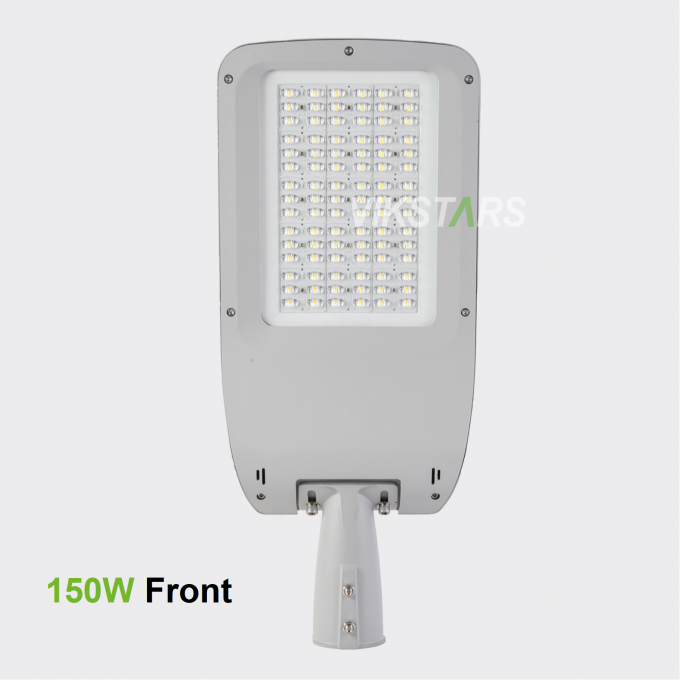

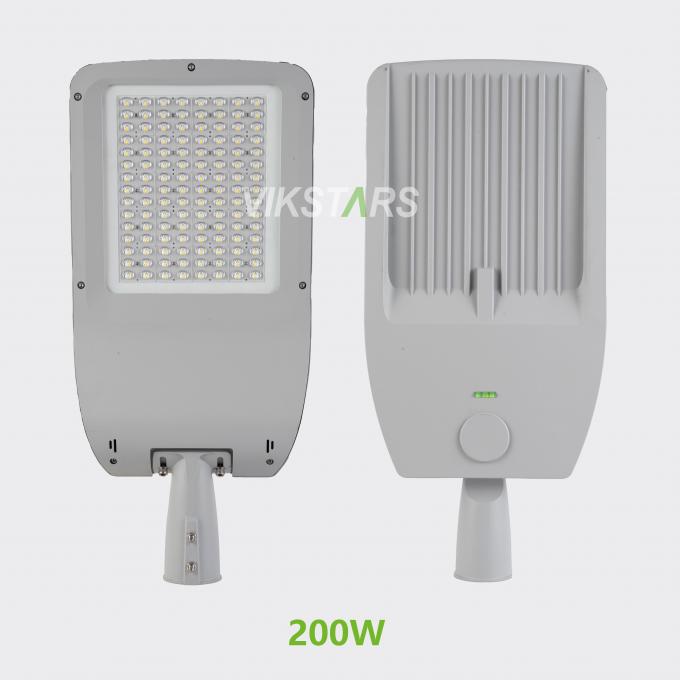

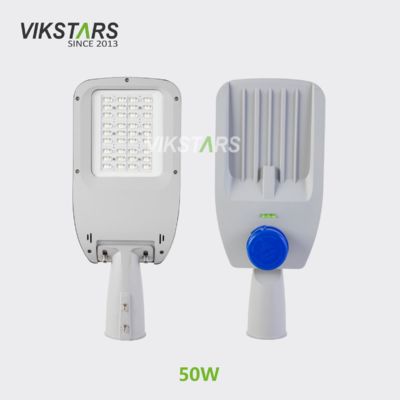

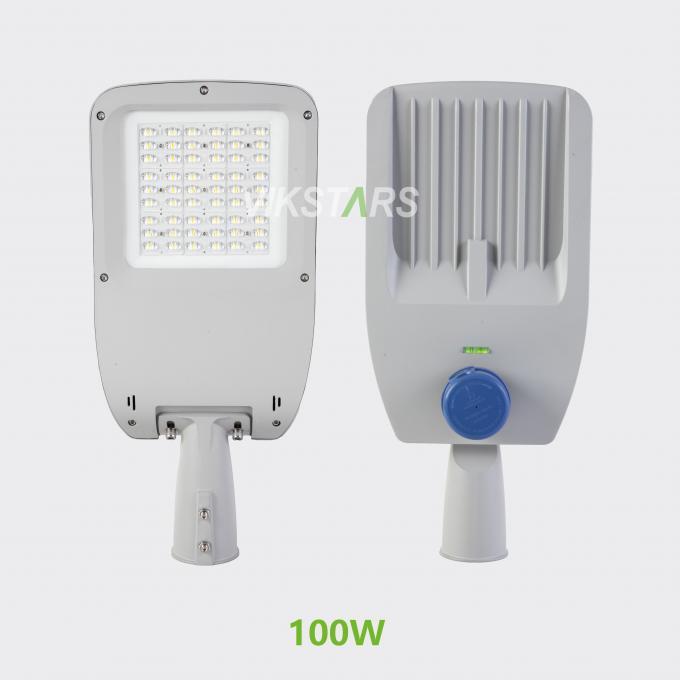

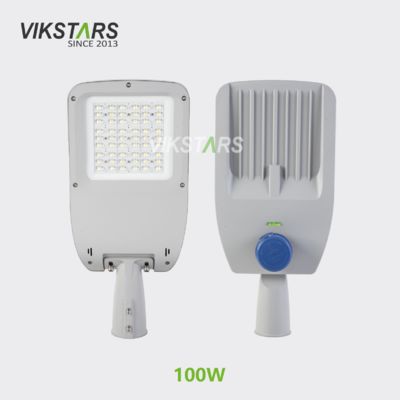

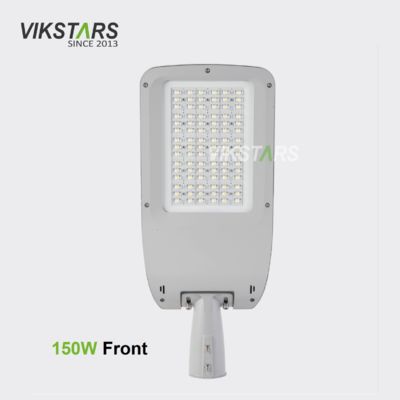

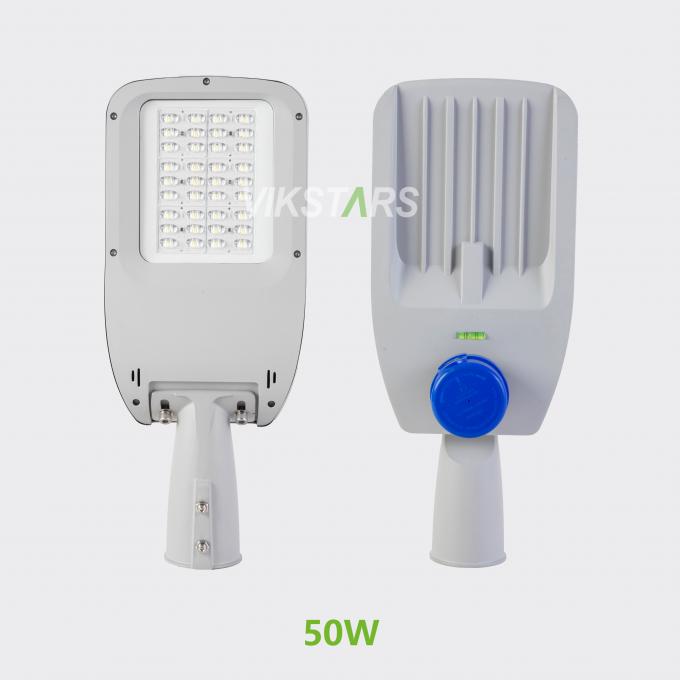

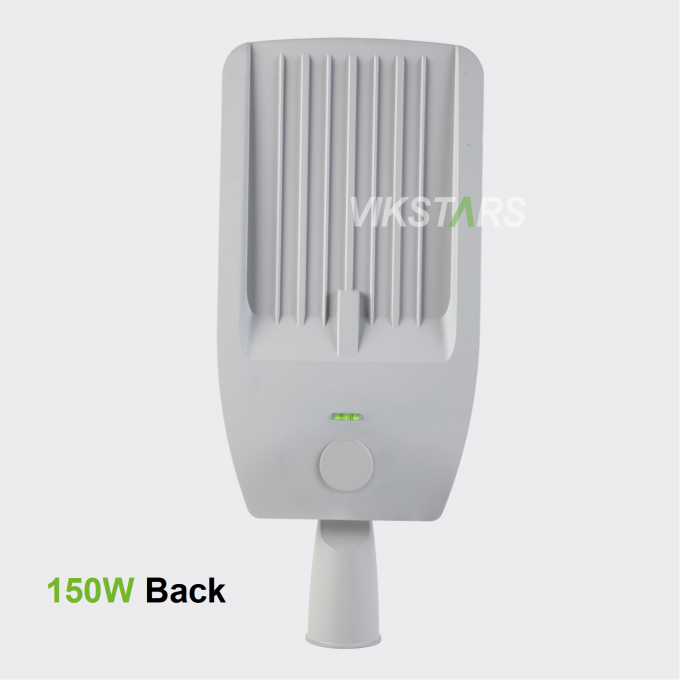

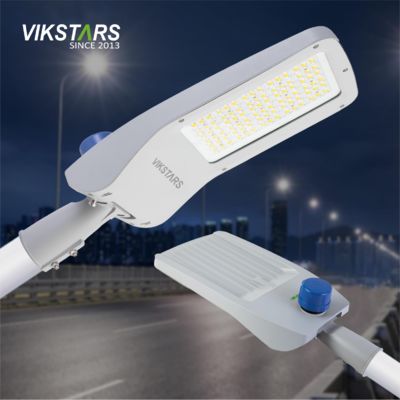

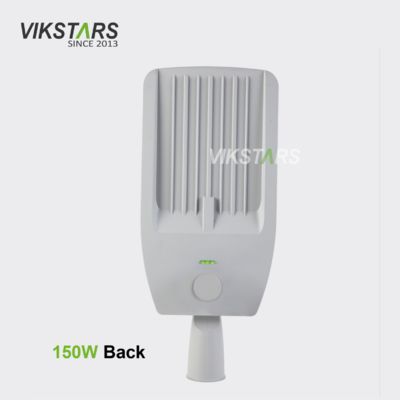

Cobra LED Street Lights Newest Public Lamp 140lm/w With 5 Years Warranty Main City Road Lighting
DELIVERY
| LAMP NAME | LED STREET LIGHT | |||
| MODEL NO. | VS-STL-C05 | VS-STL-C10 | VS-STL-C15 | VS-STL-C20 |
| POWER | 50W | 100W | 150W | 200W |
| INSTALL HEIGHT | 3-4m | 5-6m | 6-8m | 8-10m |
| LED QTY | 96pcs | 144pcs | 240pcs | 320pcs |
| BEAM ANGLE | 70*140° | |||
| VOLTAGE | 85-265Vac | |||
| PF | >0.95 | |||
| CCT | Default: Cold White (Warm White / Neutral White for option) | |||
| C.R.I. | ＞70Ra | |||
| INSTALL WAYS |
Horizontal Install / Vertical Install / Wall Install / Hug Hoop Install (Accessories not include hug hoop, need to buy additionally) |
|||
| WATERPROOF | IP65 | |||
| MATERIAL | Die-casting Aluminum Heat Sink + PC lens + Glass Cover / Sand Grey | |||

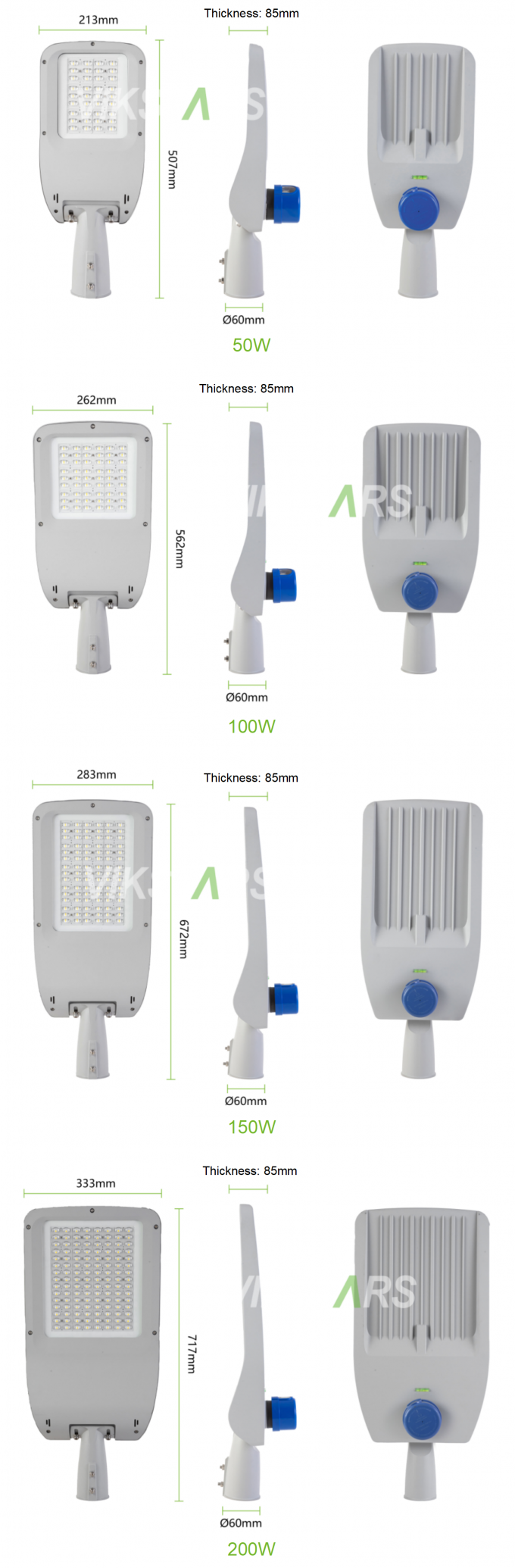

| LAMP SIZE | 220*515*85mm | 220*565*85mm | 240*635*85mm | 290*665*85mm |
| HOLDER DIAMETER | Ø60mm | |||
| PACKING | Export Neutral Carton / VIKSTARS Brand / Customizing Packing | |||
|
SOLUTION
|
Project Solution
|
Top-level Solution |
Top-level Solution-Photocell
|
| LEDs TYPE | 3030 | Big Chip 3030 | |
| LUMEN EFFICIENCY |
130lm/w
|
160lm/w | |
| DRIVER |
VIKSTARS
Self-Developed Driver
|
Global Certified
MEANWELL Driver
|
|
| WARRANTY |
3 Years
|
5 Years
|
|

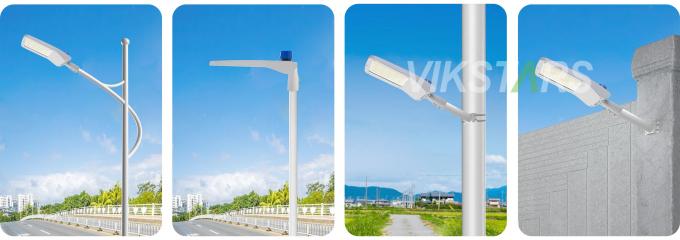

| Horizontal Install | Vertical Install | Hug Hoop Install | Wall Install |
| Power |
Carton Size
|
Qty/ctn | G.W. |
Packing
|
|
50W
|
520*220*105mm
|
1pc/ctn |
2.00kg
|
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
| 100W |
570*270*105mm
|
1pc/ctn |
2.70kg
|
|
| 150W |
680*290*105mm
|
1pc/ctn |
3.50kg
|
|
|
200W
|
730*340*105mm
|
1pc/ctn |
4.20kg
|
|
|
