| Brand Name: | VIKSTARS |
| Model Number: | VS-STL-Y |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM:VS-STL-Y20 Lamp size: 290*665*85mm, Lamp Carton: 78*27*10cm, 1pc/ctn |
| Payment Terms: | T/T |

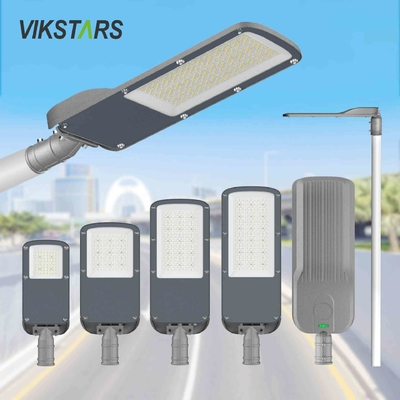

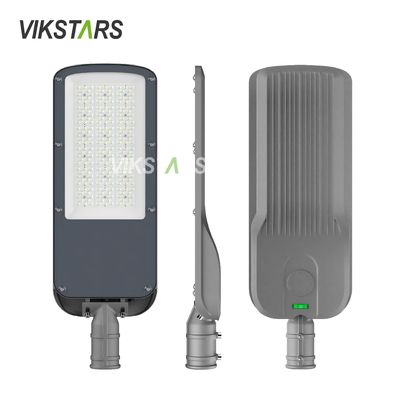

New Cheap Price LED Street Lamps With Photocell For Main Street Lighting IK08 IP65 Public Lighting Lamp
| LAMP NAME | LED STREET LIGHT | ||||
| MODEL NO. | VS-STL-Y05 | VS-STL-Y10 | VS-STL-Y15 | VS-STL-Y20 | VS-STL-Y24 |

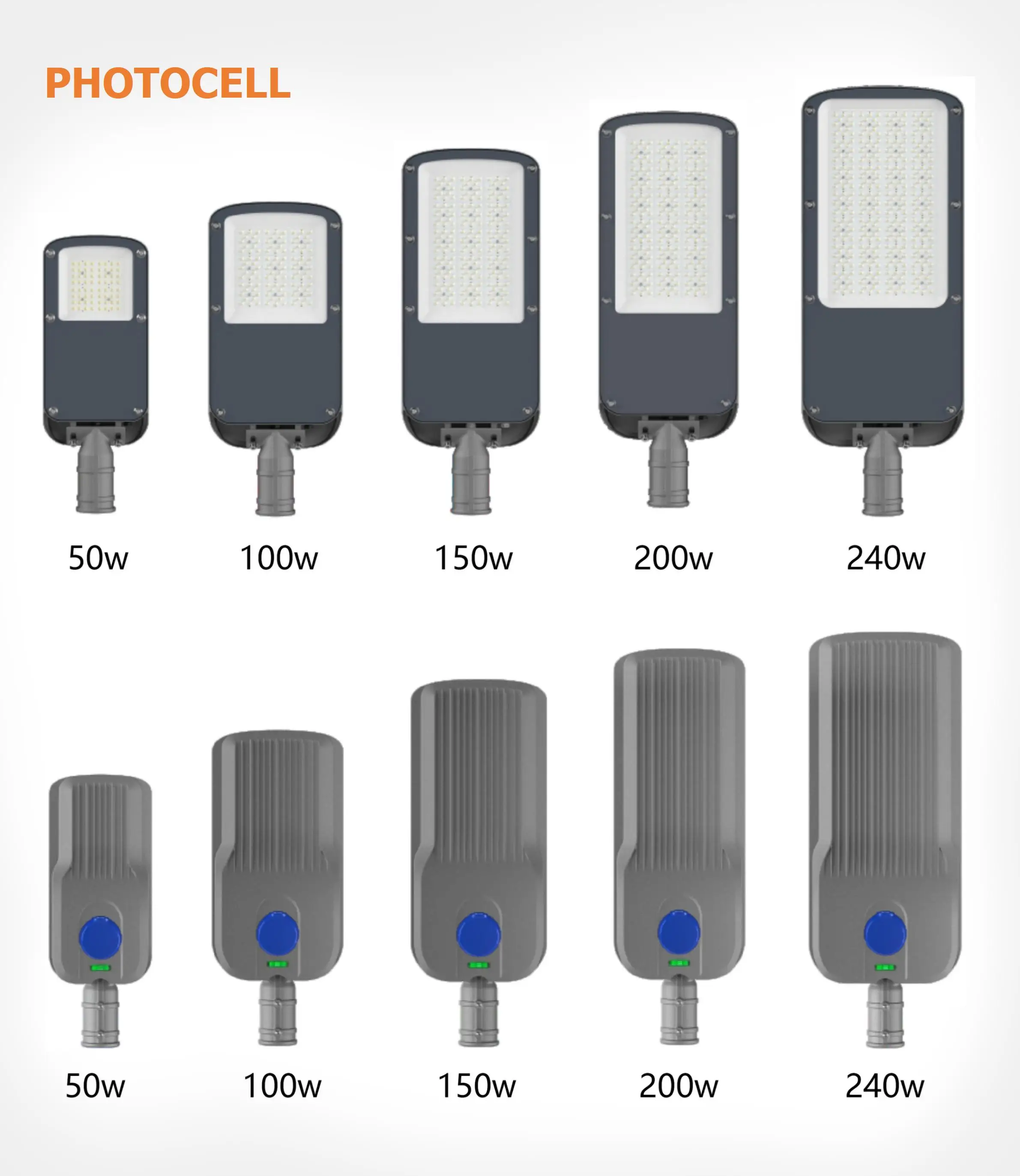

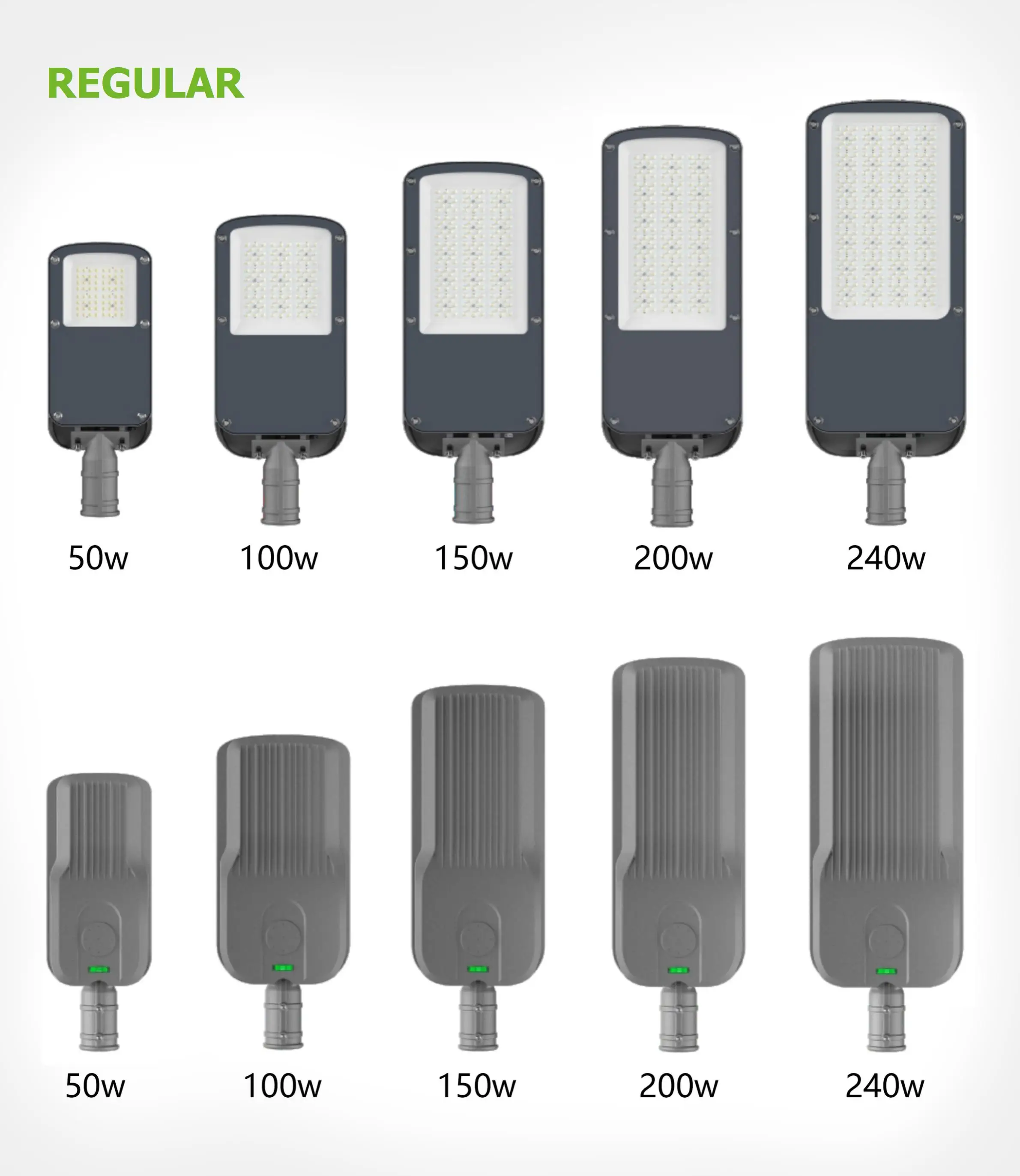

| POWER | 50W | 100W | 150W | 200W | 240W |

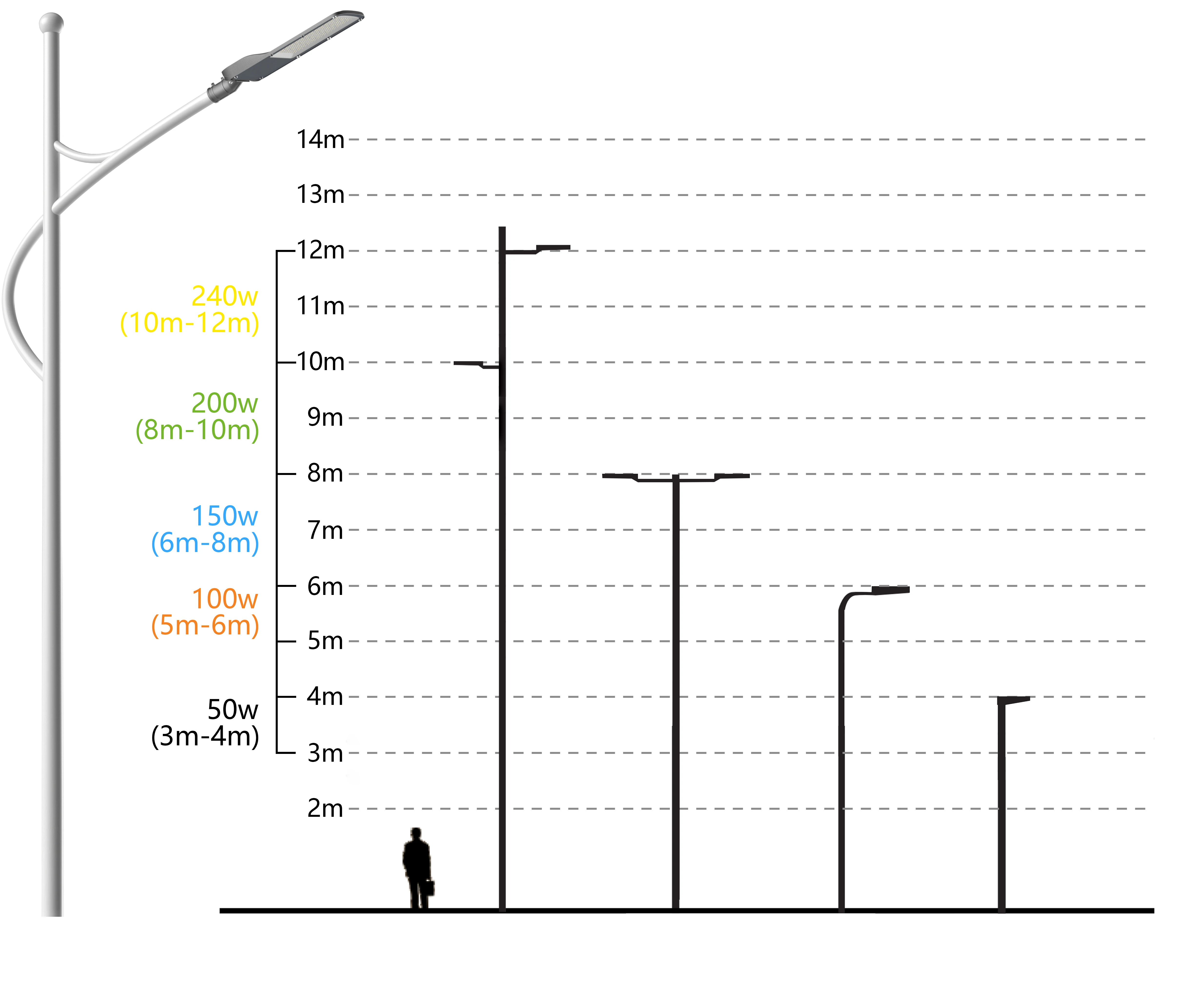

| INSTALL HEIGHT | 3-4m | 5-6m | 6-8m | 8-10m | 10-12m |
| LED QTY | 64pcs | 112pcs | 184pcs | 216pcs | 336pcs |
| HOLDER DIAMETER | Ø60mm | ||||
| EFFICIENCY | 120lm/w | ||||
| BEAM ANGLE | 70*140° | ||||
| VOLTAGE | 100-265Vac | ||||
| PF | >0.95 | ||||
| DRIVER | VIKSTARS Self-Developed Driver | ||||
| CCT | Default: Cold White (Warm White / Neutral White for option) | ||||
| C.R.I. | ＞70Ra | ||||

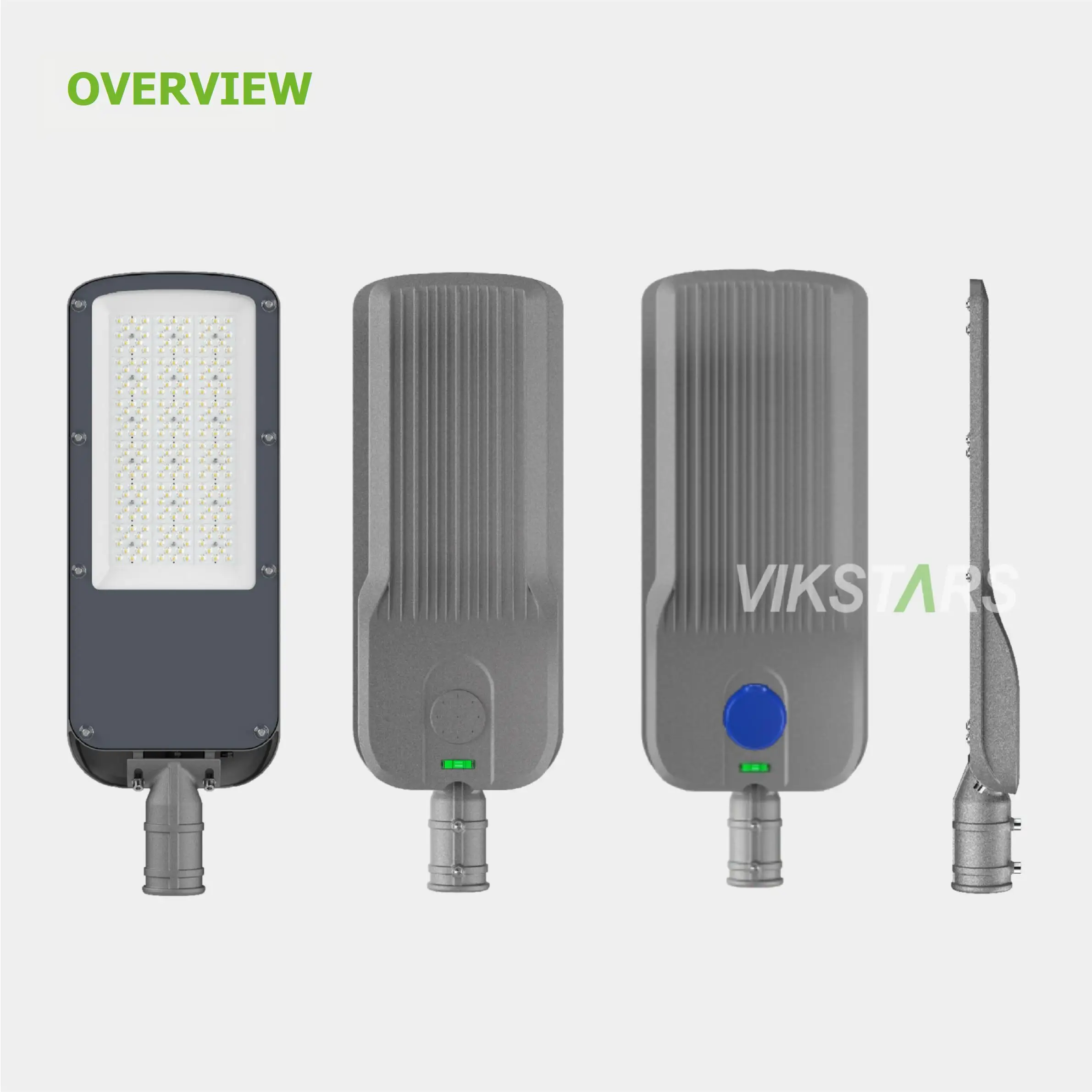

| INSTALL WAYS |
Horizontal Install / Vertical Install / Wall Install / Hug Hoop Install (Accessories not include hug hoop, need to buy additionally) |
||||
| WATERPROOF | IP65 | ||||
| MATERIAL | Die-casting Aluminum Heat Sink + PC lens + Glass Cover / Sand Grey | ||||
| LAMP SIZE | 535*205*80mm | 605*260*80mm | 705*260*80mm | 760*260*80mm | 810*305*80mm |
| HOLDER DIAMETER | Ø60mm | ||||

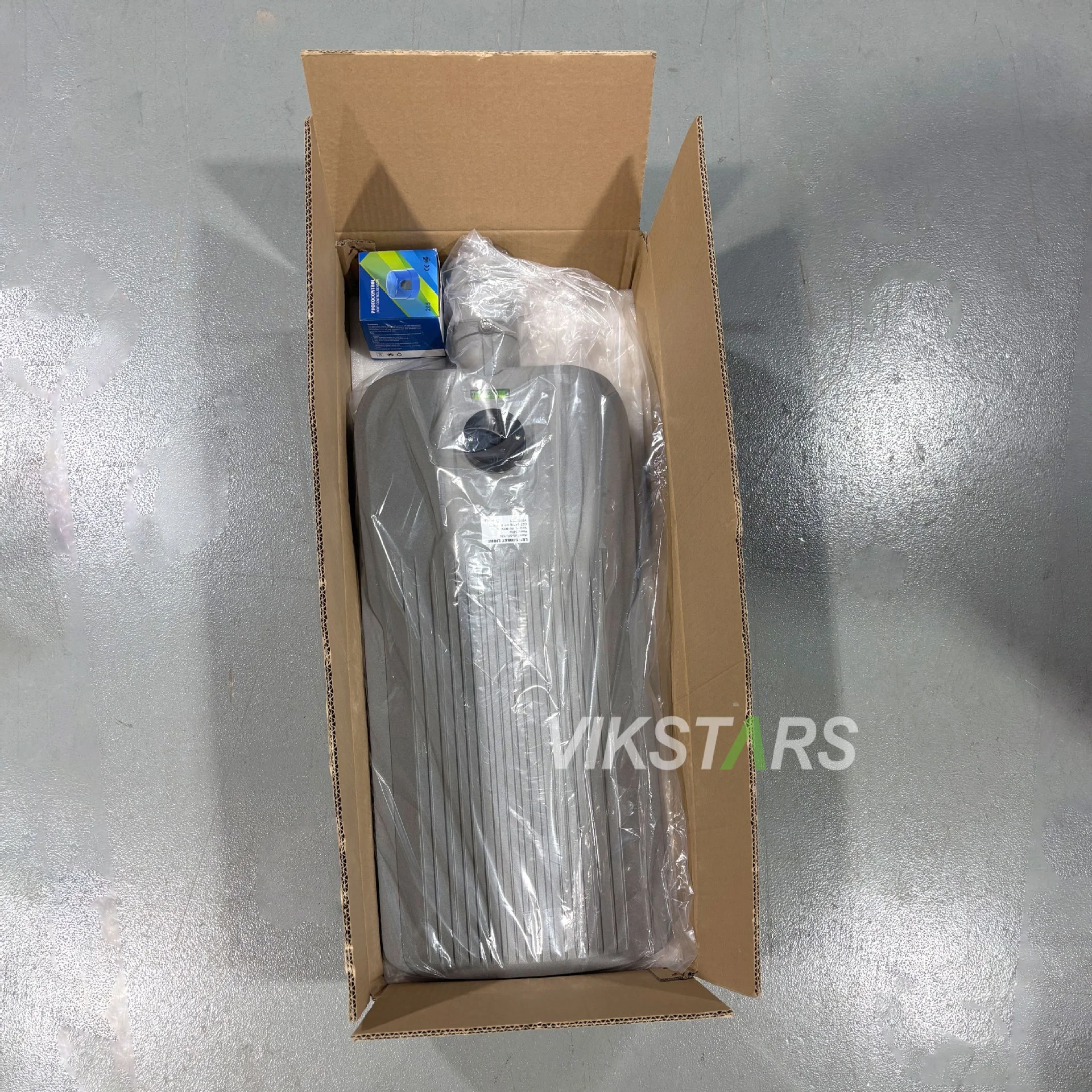

| PACKING | Export Neutral Carton / VIKSTARS Brand / Customizing Packing | ||||
|
SOLUTION
|
Project Solution
|

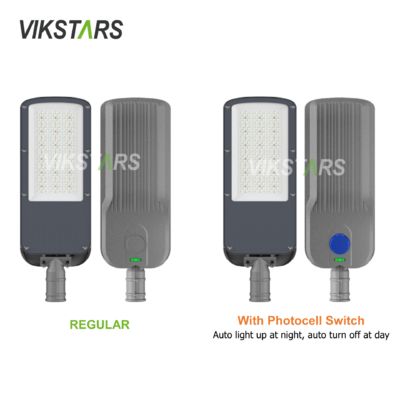

Project Solution -With Photocell |
Top-level Solution |
Top-level Solution -With Photocell |
| LEDs TYPE | 3030 | Big Chip 3030 | ||
| DRIVER |
VIKSTARS
Self-Developed Driver
|
Global Certified
MEANWELL Driver
|
||
| WARRANTY |
3 Years
|
5 Years
|
||
| Horizontal Install | Vertical Install |
|
Power
|

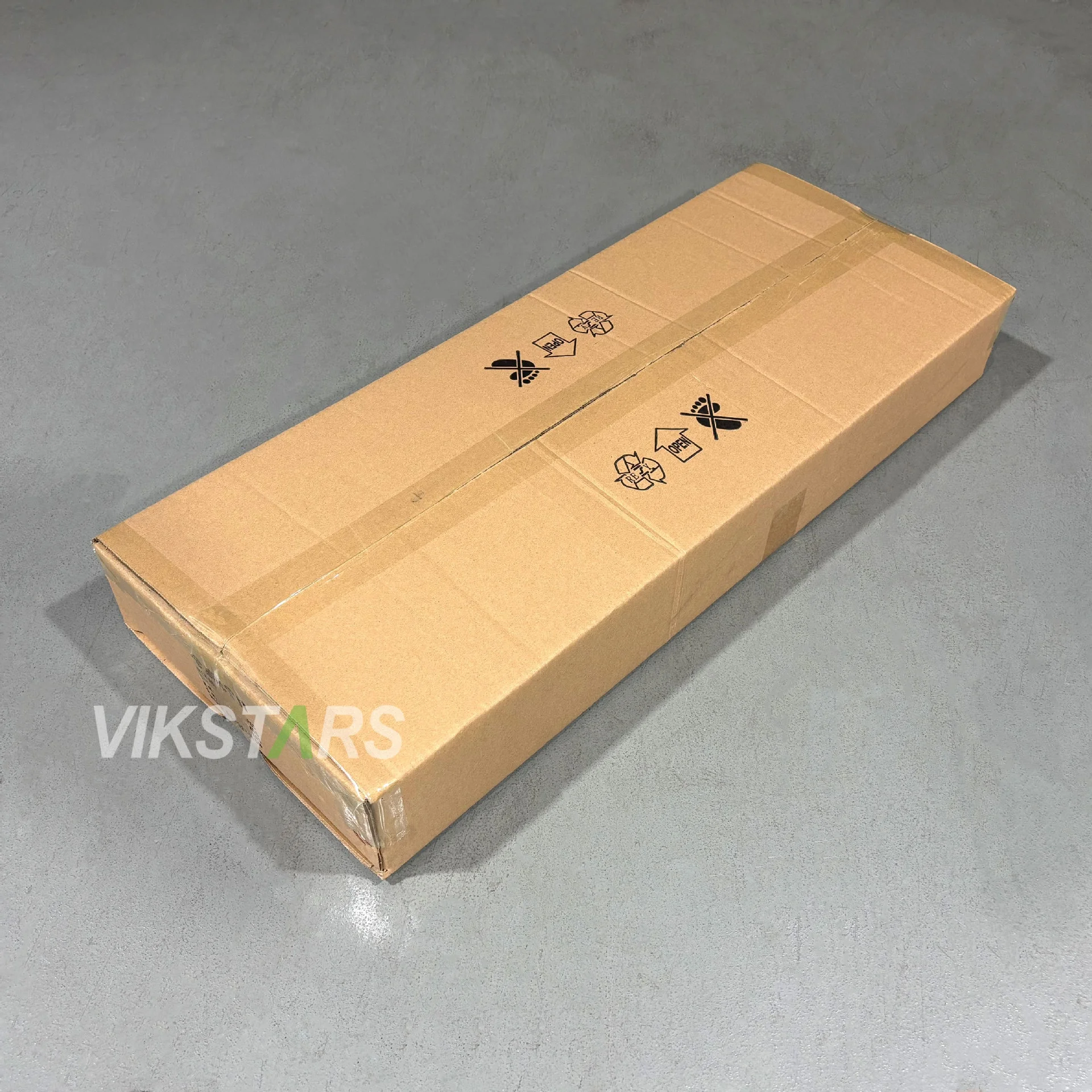

Carton Size
|
Qty/ctn | G.W. |
Packing
|
| 50W | 550*210*100mm |
1pc/ctn
|
2.55kg |
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
| 100W | 630*270*100mm |
3.20kg |
||
| 150W | 730*270*100mm | 4.00kg | ||

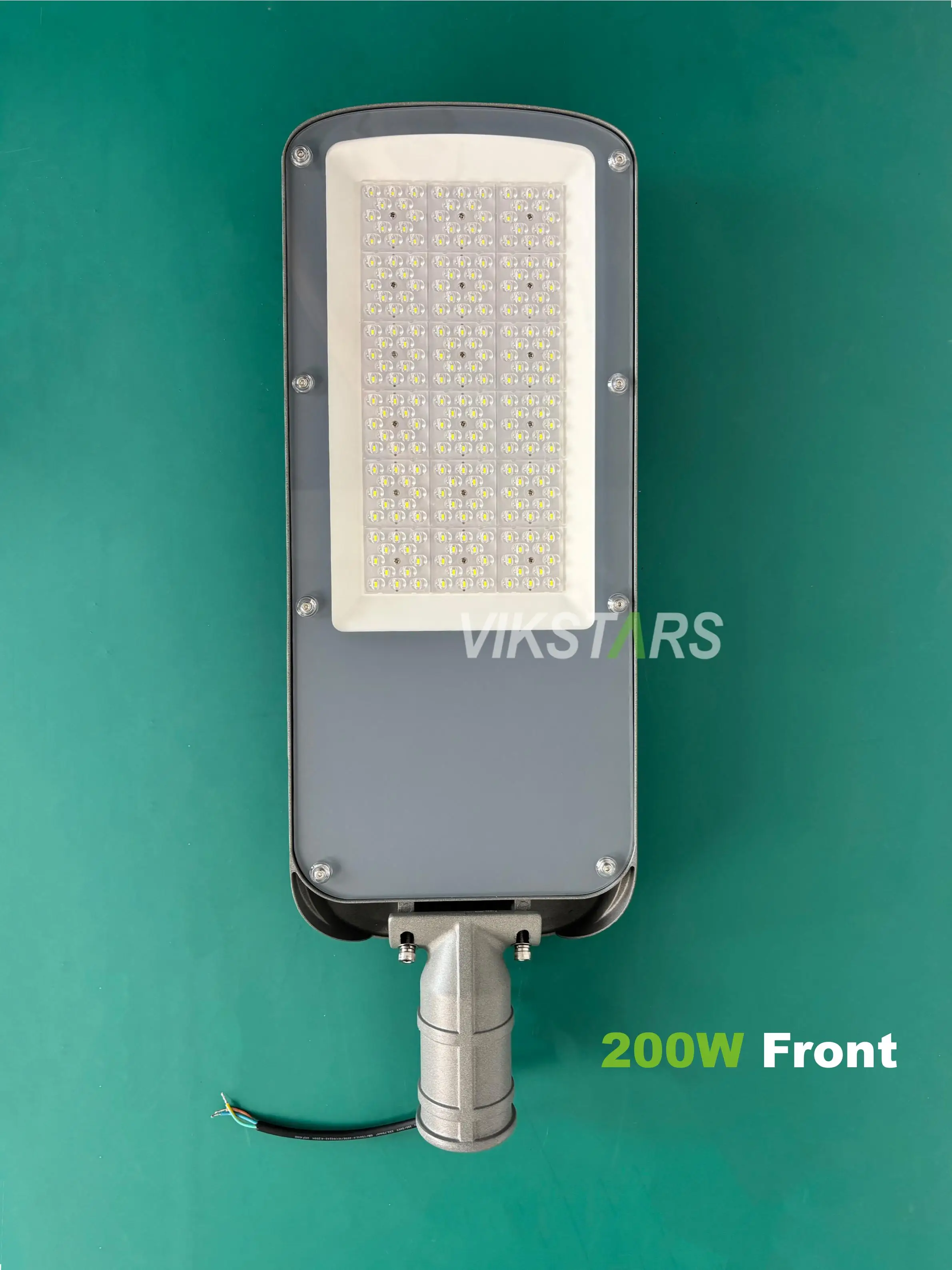

| 200W |
780*270*100mm
|
4.80kg | ||

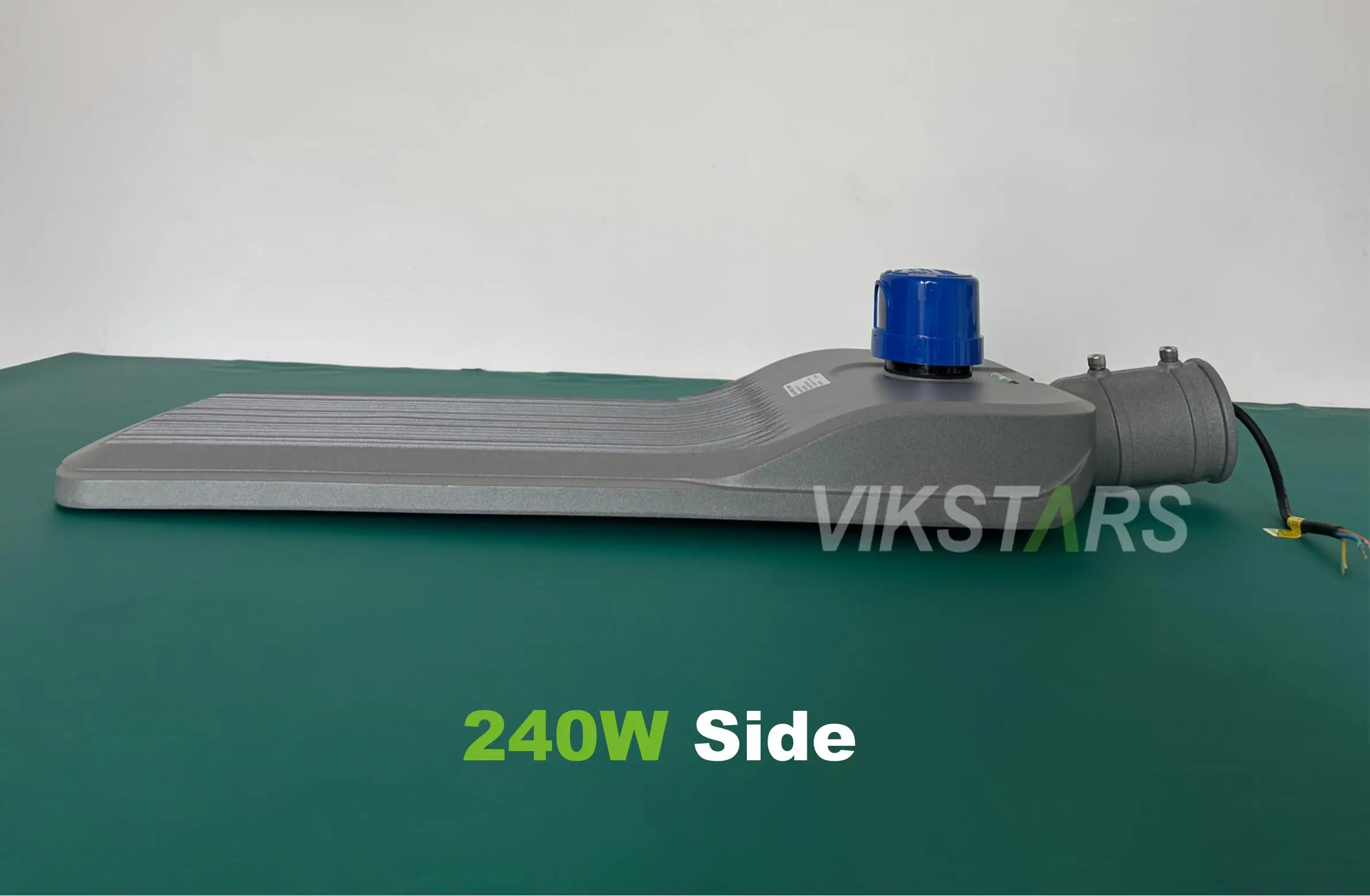

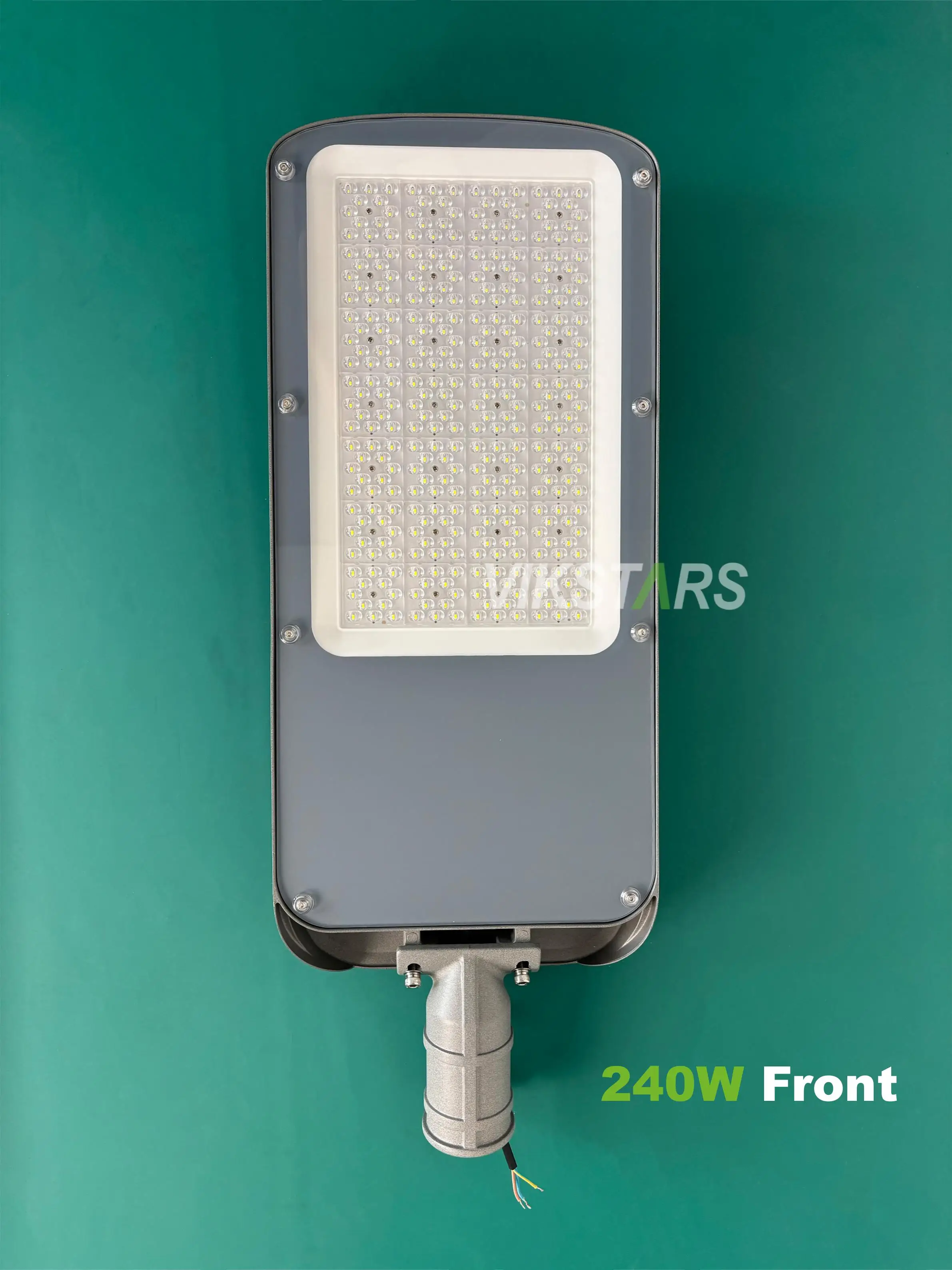

| 240W | 830*320*100mm | 4.80kg |
|
|
