| Brand Name: | VIKSTARS |
| Model Number: | VS-FLD-D |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM:VS-FLD-D20 Lamp size: 180*505*150mm, Lamp Carton: 50.5*15.5*24cm, 1pc/ctn |
| Payment Terms: | T/T |

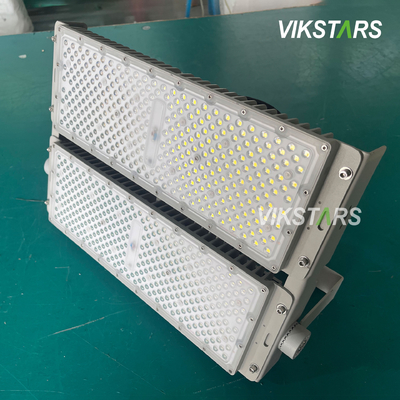

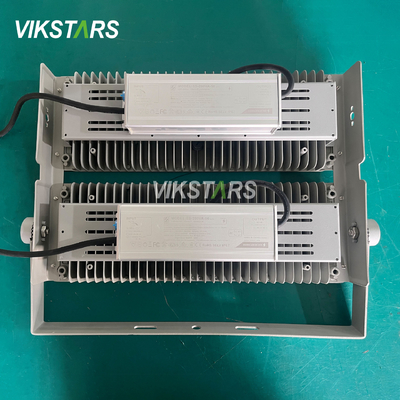

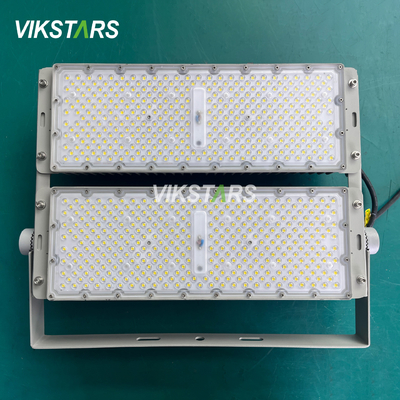

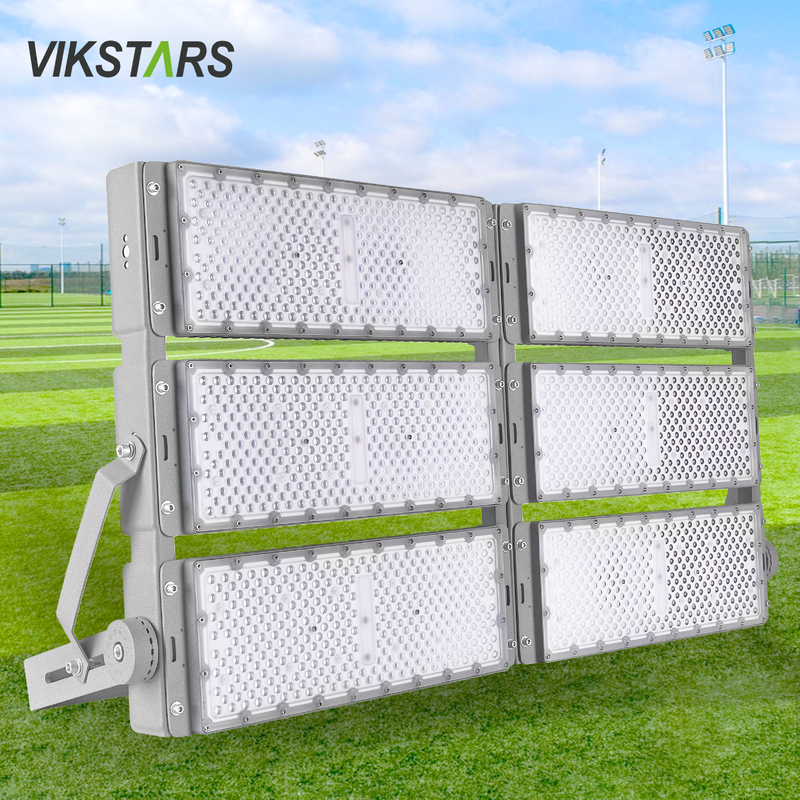

200W Module 400W 600W 800W 1200W Flood Lights For Sports Stadium Lighting
DELIVERY
|
LAMP NAME
|
MODULE LED FLOOD LIGHT (50W/MODULE)
|
|||||
| MODEL NO. |
VS-FLD-D20
|
VS-FLD-D40 | VS-FLD-D60 |
VS-FLD-D80
|
VS-FLD-D100
|
VS-FLD-D120 |
| POWER | 200W |
400W
|
600W | 800W | 1000W | 1200W |
| BEAM ANGLE |
Regular 90° (30° /60° / 70*145° for option)
|
|||||
| VOLTAGE |
100-265Vac
|
|||||
| C.R.I. |
70-80Ra
|
|||||
| LIFESPAN |
>50000Hrs
|
|||||
| PF |
>0.95
|
|||||
| CCT |
Regular Cold White (Warm White / Neutral White for option)
|
|||||
| WORK TEMP |
-20℃ - 50℃
|
|||||
| WATERPROOF |
IP65
|
|||||
| MATERIAL |
Die-casting Aluminum Heat Sink + PC Lens / Sand Grey
|
|||||
| LED QTY |
336pcs
* 1 module
|
336pcs
* 2 modules
|
336pcs
* 3 modules
|
336pcs
* 4 modules
|
336pcs
* 5 modules
|
336pcs
* 6 modules
|

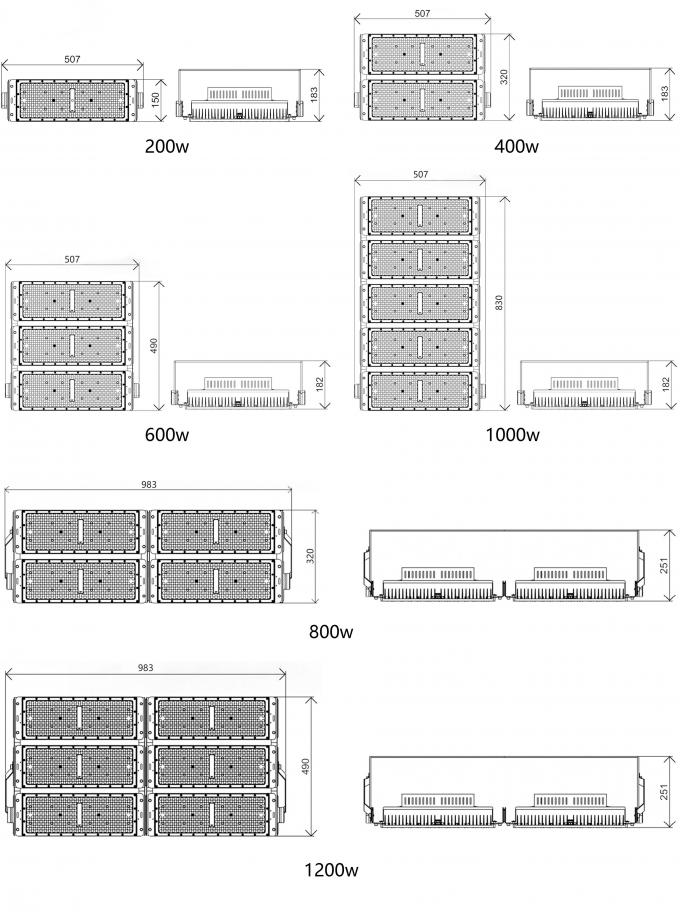

| LAMP SIZE |
505*150*180mm
|
505*150*320mm
|
505*490*180mm
|
505*660*180mm
|
505*830*180mm
|
505*985*490mm
|
| INSTALL WAY |
Ground Install / Ceiling install / Wall Install / Pole Install
|
|||||
| PACKING |
Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing
|
|||||
|
SOLUTION
|
Selected Solution |
Project Solution
|
Top-level Solution
|
| LEDs TYPE | 3030 | EMC 3030 | LUMILEDS-2835SMD |
| LUMEN EFFICIENCY |
140lm/w
|
160lm/w
|
160lm/w |
| DRIVER |
VIKSTARS
Self-Developed Driver
|
VIKSTARS
Self-Developed Driver
|
Global Certified
MEANWELL Driver
|
| WARRANTY | 3 Years |
3 Years
|
5 Years
|
| Ground Install | Ceiling Install | Wall Install | Pole Install |
|
Power
|
Carton Size
|
Qty/Ctn
|
G.W.
|
Packing
|
|
200W
|
505*155*240mm
|
1pc/ctn
|
4.35kg
|
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
|

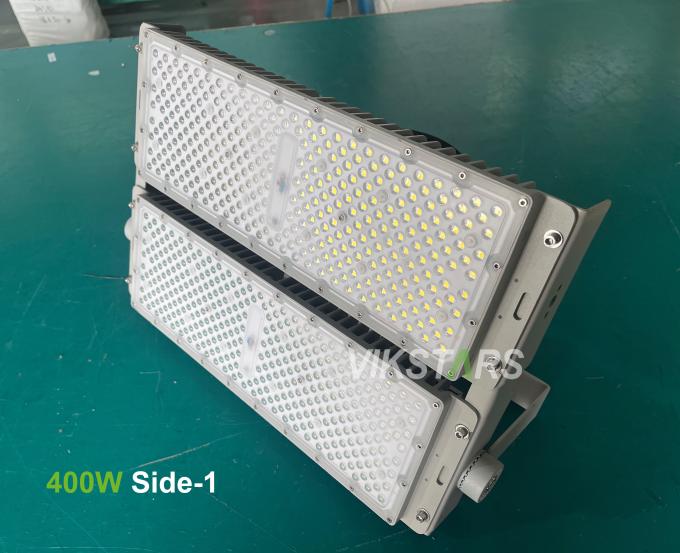

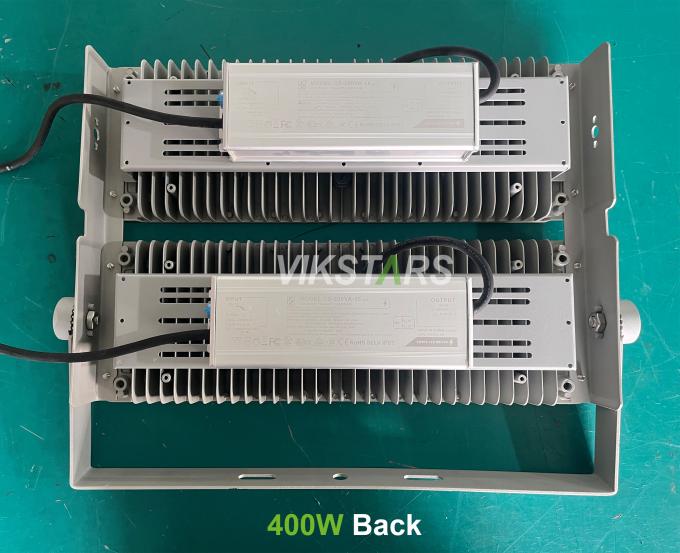

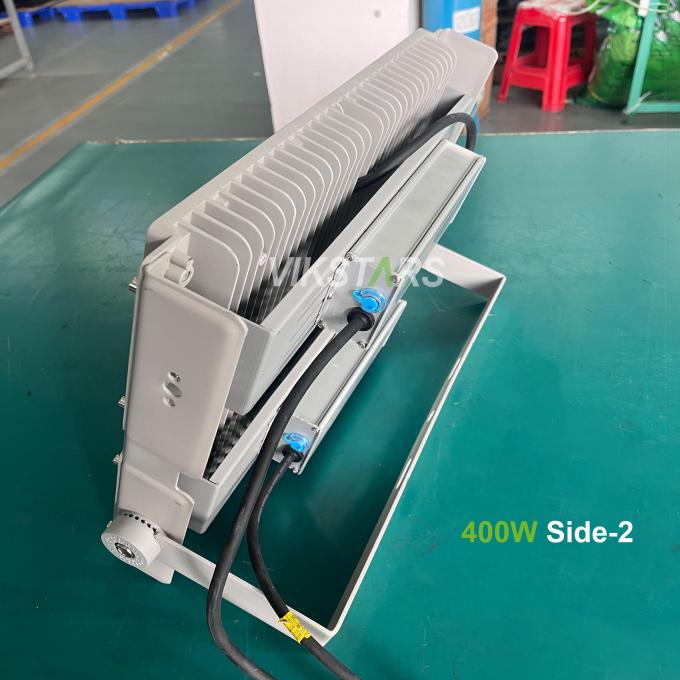

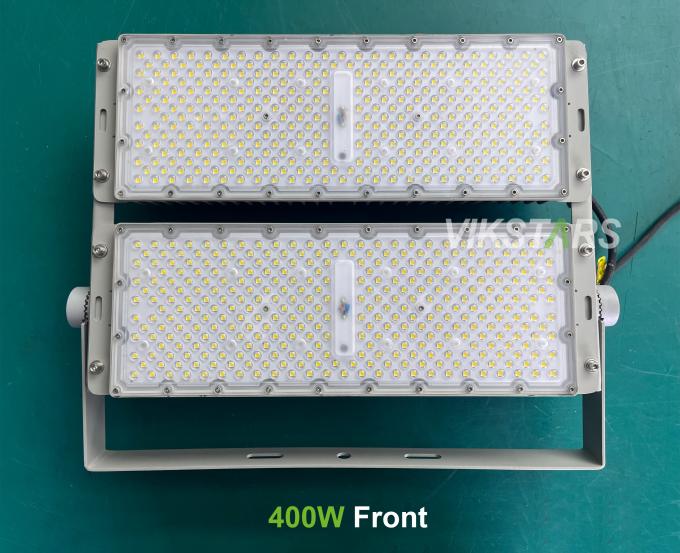

400W
|
505*155*405mm
|
1pc/ctn |
8.10kg
|
|
|
600W
|
575*155*505mm
|
1pc/ctn
|
12.65kg
|
|
|
800W
|
745*155*505mm
|
1pc/ctn
|
16.60kg
|
|
|
1000W
|
915*155*505mm
|
1pc/ctn
|
19.60kg
|
|
|
1200W
|
970*155*800mm
|
1pc/ctn
|
26.00kg
|
|
