| Brand Name: | VIKSTARS |
| Model Number: | VS-SSA-H |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM:VS-SSA-H90 Lamp size: 1950*400*40.5 mm, Solar panel size: 390*730*25mm Lamp Carton: 200.5*44.5*16cm, 1pc/ctn Sleeve base: 26.5*22*19cm, 2pcs/ctn |
| Payment Terms: | T/T |

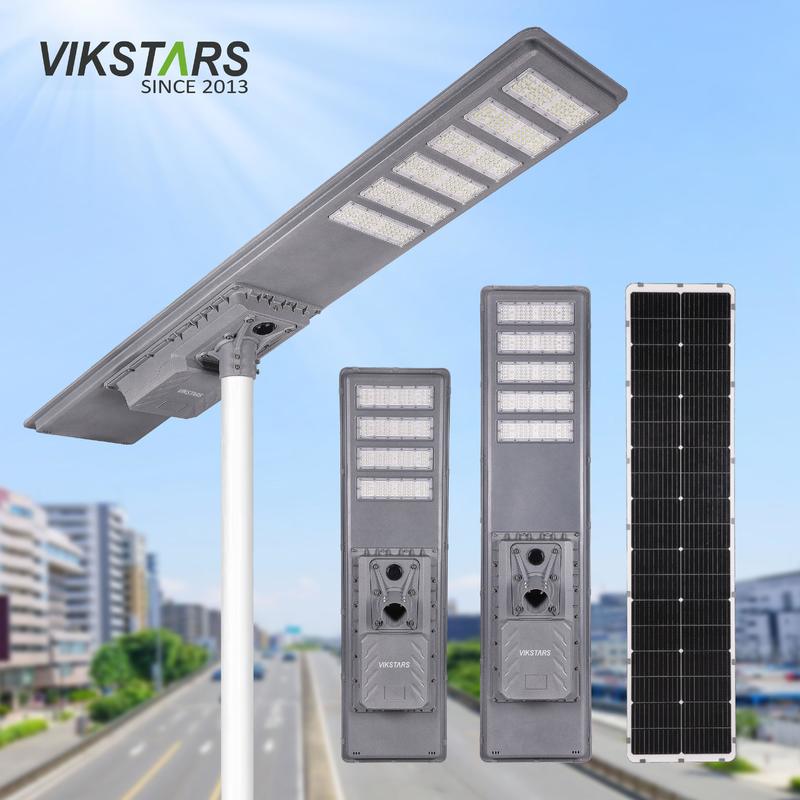

600W 750W 900W Integrated Solar Street Lights For Highway Main Street With Motion Sensor
DELIVERY
|
LAMP NAME
|
For Project Solar Street Lights
|
||
|
MODEL NO.
|
VS-SSA-H60
|
VS-SSA-H75
|
VS-SSA-H90
|
|
POWER
|
600W
|
750W
|
900W
|
|
BATTERY
|
3.2V 22AH Lithium
|
3.2V 26AH Lithium
|
3.2V 32AH Lithium
|
|
SOLAR PANEL
|
Mono 18V 100W
|
Mono 18V 120W
|
Mono 18V 145W
|
|
LUMEN
|
7200lm
|
9000lm
|
10800lm
|
|
LED QTY
|
SMD 5054*200pcs
|
SMD 5054*250pcs | SMD 5054*300pcs |
|
BEAM ANGLE
|
120°
|
||
|
CCT
|
Cold White
|
||
|
C.R.I
|
70-80Ra
|
||
|
CHARGE TIME
|
4-6 hours
|
||
|
LASTING TIME
|
16-18 hours / 3-5 rainy days
|
||
|
INSTALL HEIGHT
|
6-8m
|
8-10m
|
10-12m
|
|
LIGHTING AREA
|
300㎡
|
500㎡
|
800㎡
|
|
WORKING MODE
|
Intelligent Light Control + Time Control + Radar Induction (Support Customize)
|
||
|
INSTALL WAY
|
Pole Install
|
||
|
MATERIAL
|
Galvanized Sheet Heat Sink + PC Lens / Sand Grey
|
||
|
LAMP SIZE
|
1436*400mm
|
1713*400mm | 1954*400mm |
|
LAMP HOLDER
|
Ø85mm
|
||
|
PACKING
|
Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing
|
||
|
WARRANTY
|
2 Years
|
||
|
Power
|
Carton Size | Qty/ctn | G.W. | Packing |
| 600W | 1pc/ctn | 5.35kg |
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
|
| 750W | 1pc/ctn | 5.70kg | ||
| 900W | 2005*445*160mm | 1pc/ctn | 26.00kg | |
| Sleeve Base | 265*220*130mm | 2pcs/ctn |
2.00kg
|
|
