Brand Name:	VS
Model Number:	VS-SSL-L
MOQ:	20
Price:	Negotiable
Packaging Details:	ITEM: VS-SSL-L30 Lamp size: 55025590 mm, Solar panel size: 53035017mm, Ctn size: 610155435mm 1pc/ctn
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, CB, ROHS, AS Required

Product Name:

Solar Street Light L Series

Power:

300W 500W 600W 1000W 1600W

Solar Panel:

5V/30W;50W;60W;6V/90W;18V/120W

Battery:

3.2V/24AH/36AH/60AH/100AH; 12.8V/60AH

Color:

Grey

Work Mode:

Time Control+ Light Control Remote ControL

Waterproof:

IP66

Installation Height:

4-10m

Supply Ability:

5000pcs per Month

Product Description

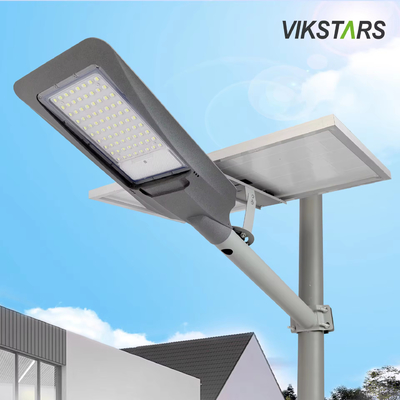

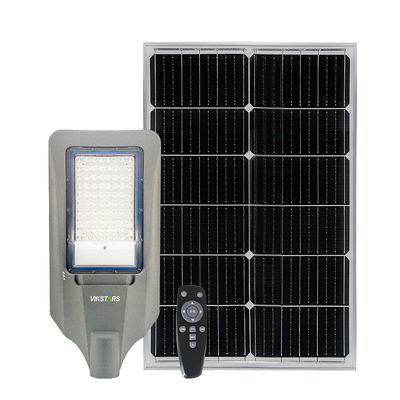

300W 500W 600W 1000W 1600W Solar Street light high lumen 170lm/w For Road / Street LED Solar Lights

-DELIVERY-

1. 300W/500W, a few stock, will arrange shippment in 2-3 days; 600W/1000W/1600W are for project, no stock, production time around 10 days;

2. This solar street lamp body with & without " VIKSTARS " trademark will be shipped randomly for small order, if have requirements for this pls let us know;

3. Price on EXW term, not including tax or freight, but we can offer logistics and customs clearance assistance.

-PARAMETERs-

LAMP NAME	L Series - Solar Street Lights
MODEL NO.	VS-SSL-L03	VS-SSL-L05	VS-SSL-L06	VS-SSL-L10	VS-SSL-L16
POWER	300W Project Solution	500W Project Solution	600W Project Solution	1000W Top-level Solution	1600W Top-level Solution
BATTERY	3.2V 24AH Lithium	3.2V 36AH Lithium	3.2V 60AH Lithium	3.2V 100AH Lithium	12.8V 60AH Lithium
SOLAR PANEL	Mono 5V 30W	Mono 5V 50W	Mono 5V 60W	Mono 6V 100W	Mono 18V 120W
LUMEN	1760lm	2880lm	3840lm	5400lm	10800lm
LED QTY	SMD5054*80PCS, 4-chip 1530			Brightlux SMD5050*80pcs, 4-chip 1734
BEAM ANGLE	120°
CCT	Cold White
CHARGE TIME	4-6 hours
LAST TIME	16-18 hours / 3-5 Rainy days
INSTALL HEIGHT	4-5m	4-6m	5-7m	6-8m	8-10m
LIGHT AREA	100㎡	200㎡	300㎡	400㎡	800㎡
WORK MODE	Intelligent Light control + Time Control + Remote Control
INSTALL WAY	Pole / Wall / Hug Hoop Installation (accessories not include hoop, need buy additionally)
WATERPROOF	IP66
MATERIAL	High Quality Aluminum Heat Sink + PC lens / Sand Grey
LAMP SIZE	55025590mm (same size for all series)
PANEL SIZE	530350 17mm	670445 25mm	670535 25mm	670915 30mm	6701020 30mm
PACKING	Integrated Packing (Export Neutral Carton / VIKSTARS Brand / Customizing Packing)			Customized According to Projects
WARRANTY	2 Years warranty

2-5 Years Warranty Solar Street Light

-REAL PHOTOs-

-SOLUTIONs-


Project Solution--battery built-in 300w/500w/600w	Top-level Solution--external battery box 1000w/1600w

2-5 Years Warranty Solar Street Light

3 Installations of Project Solution

Top-level solution installation according to project


wall install	pole install	hug hoop install

2-5 Years Warranty Solar Street Light

-SIZEs-

Manually Measured, Tolerances Is Possible


same size for all watts	300w: 500mm length 500w: 600mm length	300w: total length 970mm 500w: total length 1070mm

project solution 300w	project solution 500w	project solution 600w


top-level solution 1000w	top-level solution 1600w

solar panel

2-5 Years Warra Solar Street Light

-ACCESSORIEs-

-PACKING-

Solution
