Brand Name: | VS |
Model Number: | VS-FHB-A |
MOQ: | 20 |
Price: | Negotiable |
Packaging Details: | ITEM: VS-FHB-A10, G.W/pc: 2.53kg, Lamp QTY/CTN: 8pcs/CTN , Lamp CTN SIZE: 46.5*46.5*53cm |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

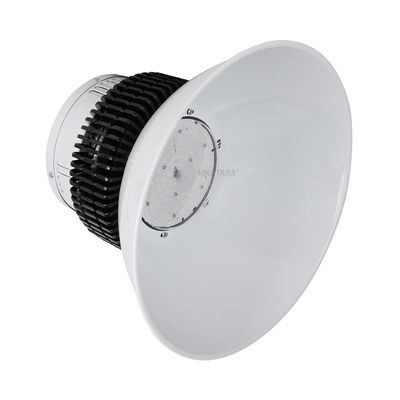

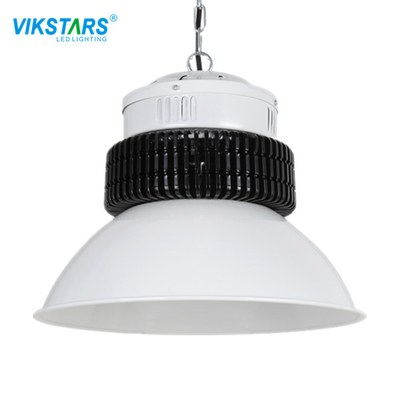

1. The Fin high bay, its heat sink & aluminum reflector can be packed separately, this save volume much, can save much more freight cost when ship via Express company.
2. Compared with similar but cheaper Fin high Bay light, our light added a thick Aluminum bottom plate, under the Aluminum fin, above the aluminum reflector, this bottom plate can absorb the heat from the PCB & LEDs first hand, so with & without the bottom plate can affect the heat dissipation much, then affect the lifespan of LEDs much.
3. The white reflector is more beautiful than traditional black led high bay lights, can be used in the garage, supermarket, warehouse and other indoor locations.
Specification of for garage fin high bay lights:
Product Name | For Garage Fin High Bay Led Light | |||
Model No
|
VS-FHB-A10
|
VS-FHB-A15
|
VS-FHB-A20
|
VS-FHB-A25
|
Power
|
100W
|
150W
|
200W
|
250W
|
LED Qty | 120 LEDs | 180 LEDs | 240 LEDs | 300 LEDs |
Lumens | 10000-13000lm+ | 15000-19500lm+ | 20000-26000lm+ | 25000-32500lm+ |
Net Weight | 2.60kg | 2.80kg | 3.90kg | 4.20kg |
Product Size | Ф420*H360mm | Φ420*H370mm | Φ480*H420mm | Ф480*H420mm |
Voltage
|
AC85 - 265V
|
|||
LED Type
|
SMD 3030
|
|||
Efficiency
|
100 - 130lm / w or higher
|
|||
C.R.I
|
≥70Ra or ≥80 Ra
|
|||
Light Angle
|
60 / 90 / 120 Degree
|
|||
Power Factor
|
≥0.9
|
|||
IP Rating
|
IP40 Indoor use
|
|||
Color Temp
|
6000K
|
|||
Working Temp
|
-20℃ - 50℃
|
|||
House case Color
|
White / Black / customzie
|
|||
Lifespan
|
>50000hrs
|
|||
Warranty
|
5 years
|
|||
Application |
Warehouse / Garage / workshop / Gymnasium |
|||
Lamp Body Material | Fin Aluminum heat sink + reflector |
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for for garage fin high bay lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How does VS proceed an order for the garage fin high bay lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
![]() |
