Product Details:
|
| IP Rating: | IP65 | Application: | Warehouse Lighting |
|---|---|---|---|
| LED Driver: | Constant Isolated Driver | Lamp Luminous Efficiency(lm/w): | 100-150lm/w |
| Working Time (hours): | 50000 | Product Name: | Ufo Led High Bay Light 100w |
| High Light: | Gym Ufo Led High Bay Light,100lm/W Ufo Led High Bay Light,Gyms Ufo Led High Bay Light 100w |
||

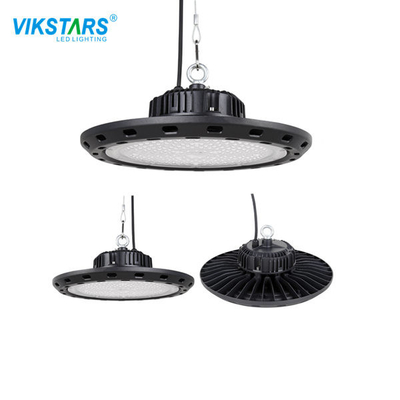

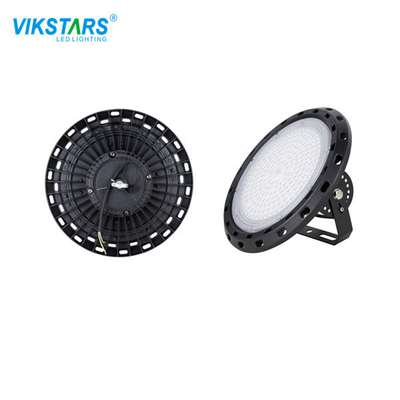

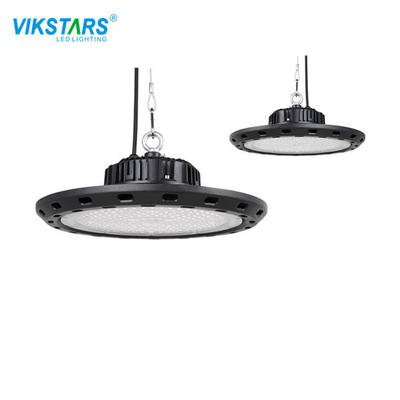

3 Years Warranty 100lm/W Ufo Led High Bay Light 100w For Gyms Lighting
Advantages:
1.The weight of this UFO High bay is precisely designed, not too light, just enough to support heat dissipation for full power, Not too heavy, will not waste money on excess aluminum, so it is a very Cost-effective full power UFO High bay .
2. Between the driver box & lamp body, we adopted a separating design, so the air can go between easily, taking away the heat, also we deigned many holes around the lamp body, so the air flowing up and down can take the heat away well .
3. Our most light are with CE ( EMC , LVD ) and RoHs certificates, some also are CB, IEC, listed , if projects require other certificates, we can also support clients to do the required testing, to get the certificates from our side .
| Product Name | ufo led high bay light 100w | ||||
| Model No |
VS-UFO-C05
|
VS-UFO-C10
|
VS-UFO-C15
|
VS-UFO-C20
|
VS-UFO-C24
|
| Power |
50W
|
100W
|
150W
|
200W
|
240W
|
| LED Qty |
98 LEDs
|
140 LEDs
|
210 LEDs
|
280 LEDs
|
280 LEDs
|
| Size |
Ф240*150mm
|
Ф288*150mm
|
Ф340*165mm
|
Ф390*195mm
|
Ф390*225mm
|
| Package |
27*27*15cm
|
32*32*15cm
|
37*37*17cm
|
46*46*22cm
|
46*46*25cm
|
| NW |
1.5kg
|
2.1kg
|
3.0kg
|
4.6kg
|
6.2kg
|
| Voltage | 85 - 265V / 277V | ||||
| LED Type | SMD 3030 LEDs | ||||
| C.R.I | >70Ra | ||||
| Lumen Efficiency | 100 - 150 lm / w | ||||
| IP Rating | IP65 | ||||
| Color Temp | 6000K | ||||
| Working Temp | -20℃ - 50℃ | ||||
| Beam Angle | 60 / 90 / 120 Degree | ||||
| Installation | Hook / Bracket | ||||
| Lifespan | >50000 hrs | ||||
| Warranty | 2 - 5years | ||||
| Application | Garage, Factory, indoor sports field,badminton court Lighting | ||||
| Materials | Aluminum heat sink, PC lens, Stainless screws, waterproof rubber ring, waterproof connector | ||||
Miss.Joanna
VIKSTARS CO., LIMITED
Tel/wechat: +8615302797126
E-mail: vs605@vikstars.com
Http://www.vikstars.com
Q1. Can I have a sample order for Led High Bay Light 100w ?
A: Yes, VS welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. How does VS proceed an order for Led High Bay Light 100w ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on the 3 years warranty ufo high bay lamp ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
