| Brand Name: | VS |
| Model Number: | VS-LHB-B |
| MOQ: | 20 |
| Price: | Negotiable |
| Packaging Details: | ITEM: VS-LHB-B05, G.W/pc: 1.5kg, CTN SIZE: 38.5*16.5*19.5 cm |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

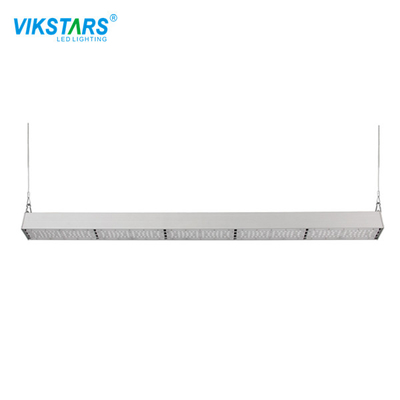

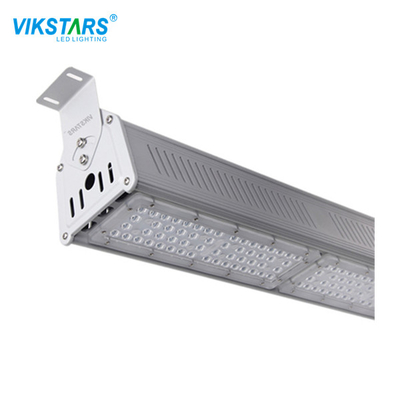

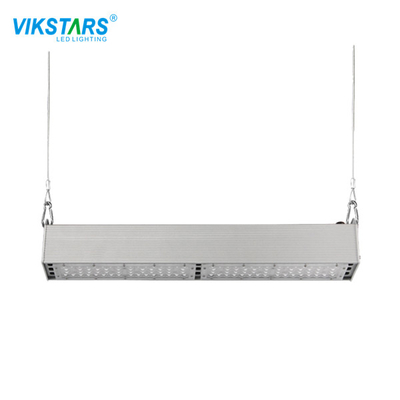

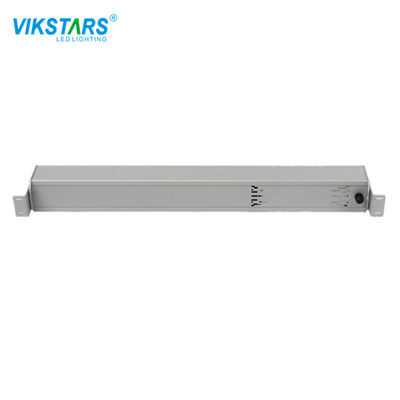

Linear High Bay Lighting Aluminum Bracket Support 100°Angle Adjustment More Flexible
Advantages:
1. Because this series linear high bay`s heat dissipation aluminum is excess, so no matter the driver or the LED working on it, will have a very few light decay, so this LED light can work a long period with good brightness .
2. Big chip, high efficiency 3030 LEDs, high lumen, high CRI, less light decay
.
3. This linear high bay lighting, is one of our main product, so our product team spent much effort to optimizing the supplying chain, The unit price of all accessories is optimized to the extreme, so compare with same level ones, our this linear high bay lighting will be more cost effective .
| Product Name | linear high bay lighting | ||||
|
Model No
|
VS-LHB-B05
|
VS-LHB-B10
|
VS-LHB-B15
|
VS-LHB-B20
|
VS-LHB-B25
|
| Power |
50W
|
100W
|
150W
|
200W
|
250W
|
| LED Qty | 90pcs | 180pcs | 270pcs | 360pcs | 450pcs |
| Lumens | 6500lm+ | 13000lm+ | 19500lm+ | 26000lm+ | 32500lm+ |
| Net Weight | 1.50kg/pc | 2.90kg/pc | 4.10kg/pc | 5.30kg/pc | 6.60kg/pc |
| Lamp Size | 360*110*165mm | 630*110*165mm | 900*110*165mm | 1165*110*165mm | 1430*110*165mm |
| Voltage |
AC85-265V
|
||||
| LED Type |
SMD 3030 LEDs
|
||||
| Efficiency |
130/150lm/w
|
||||
| C.R.I |
≥70Ra
|
||||
| IP Rating |
IP65
|
||||
| Color Temp |
3000K
|
||||
| Working Temp |
-20℃ - 50℃
|
||||
| Beam Angle |
30/60/90/30x70°
|
||||
| Power Factor |
≥0.9
|
||||
| Lifespan |
>50000hrs
|
||||
| Warranty |
3/5 years
|
||||
| Application | Warehouse/Tunnel / workshop / garage | ||||
| Lamp Body Material | Die-cast Aluminum + PC lens | ||||
Q1. Does VS offer guarantee for the linear high bay lighting ?
A: Yes, we offer 2-5 years warranty to our products.
Q2. How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q3. How does VS proceed an order for linear high bay lighting ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4: Does VS offer guarantee for the linear high bay lighting ?
A: Yes, we offer 2-5 years warranty to our products.
|
