| Brand Name: | VS |
| Model Number: | VS-FHB-A |
| MOQ: | 20 |
| Price: | Negotiable |
| Packaging Details: | ITEM: VS-FHB-A20 N.W/pc: 3.9kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Advantages:
1. For this lamp, the wire between the driver and PCB, will go through the whole in the middle of the aluminum fin, and the temperature of the fin is high, so the wire is easy to be aged , to avoid the wire been aged too fast, we will put on the protective tube over the wires, but to save cost, some cheaper fin High bay will save or skip this craft.
2. If you want to do some high bay light led changes on this high bay light led, like changing its color, adding auxiliary accessories, laser your logo on it, Something like this, we can support you for free of charge .
3. We can customize labels, manual, color box or cartons, according to clients requirement, usually we require MOQ: 500 pcs for package customize, for each lamp .
Specification:

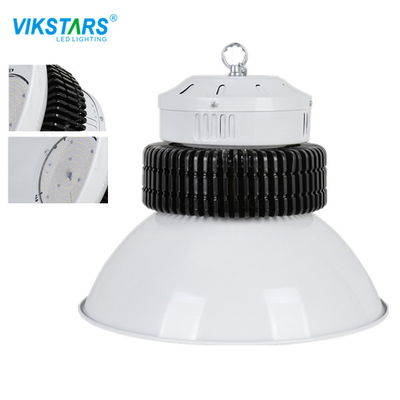

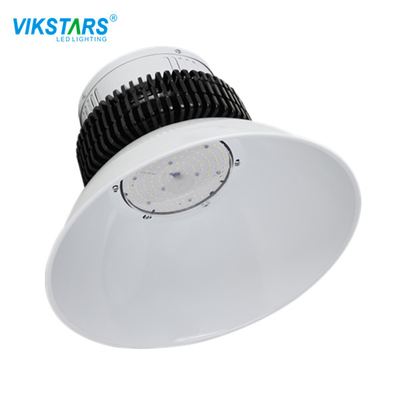

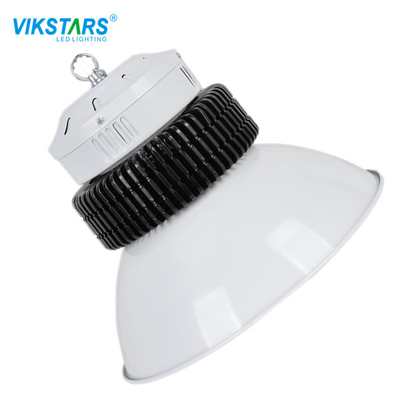

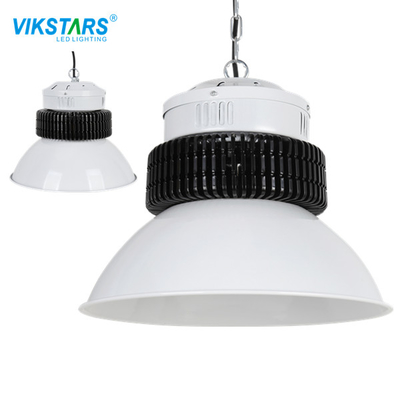

| Product Name | high bay light led | |||
|
Model No
|
VS-FHB-A10
|
VS-FHB-A15
|
VS-FHB-A20
|
VS-FHB-A25
|
|
Power
|
100W
|
150W
|
200W
|
250W
|
| Lumens | 10000-13000lm+ | 15000-19500lm+ | 20000-26000lm+ | 25000-32500lm+ |
| LED Qty | 120 LEDs | 180 LEDs | 240 LEDs | 300 LEDs |
| Net Weight | 2.60kg | 2.80kg | 3.90kg | 4.20kg |
| Product Size | Ф420*H360mm | Φ420*H370mm | Φ480*H420mm | Ф480*H420mm |
|
Voltage
|
AC85 - 265V
|
|||
|
LED Type
|
SMD 3030
|
|||
|
Efficiency
|
100 - 130lm / w or higher
|
|||
|
C.R.I
|
≥70Ra or ≥80 Ra
|
|||
|
Light Angle
|
60 / 90 / 120 Degree
|
|||
|
Power Factor
|
≥0.9
|
|||
|
IP Rating
|
IP40 Indoor use
|
|||
|
Color Temp
|
4000K
|
|||
|
Working Temp
|
-20℃ - 50℃
|
|||
|
Housecase Color
|
White / Black / Customize
|
|||
|
Lifespan
|
>50000hrs
|
|||
|
Warranty
|
2 / 3 / 4 / 5 years
|
|||
| Application | playgrounds ,tunnels, parking lots, public squares, gymnasium, mining, factories | |||
| Material | Fin Aluminum heat sink + reflector | |||
Q1. How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q2. Does VS offer guarantee for the high bay light led ?
A: Yes, we offer 2-5 years warranty to our products.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How does VS proceed an order for high bay light led ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
