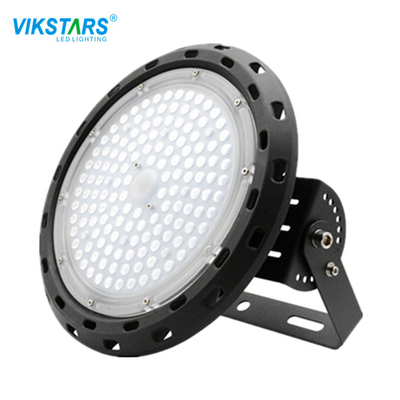

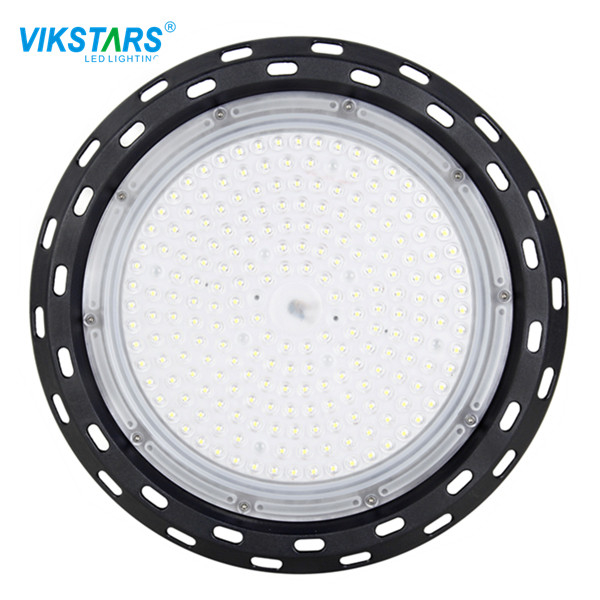

Product Details:
|
| Application: | Factories/workshops/gyms | NW: | 1.5/ 2.1/ 3.0/ 4.6/ 6.2kg |
|---|---|---|---|
| Product Name: | High Bay | Power: | 50W/100W/150W/200W/240W |
| Control Mode: | Switch Control | Lamp Luminous Flux(lm): | 5000~36000LM, 5000~31200LM |
| High Light: | SMD 3030 High Bay LEDs,200W UFO High Bay LEDs,CE Approved High Bay LED Light |
||
Advantages:

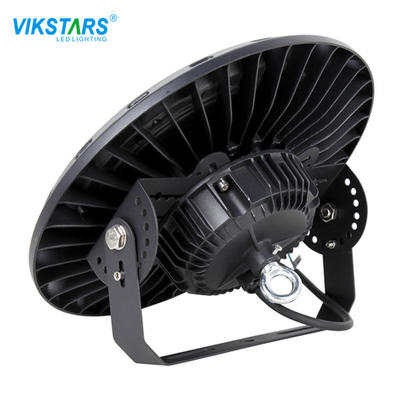

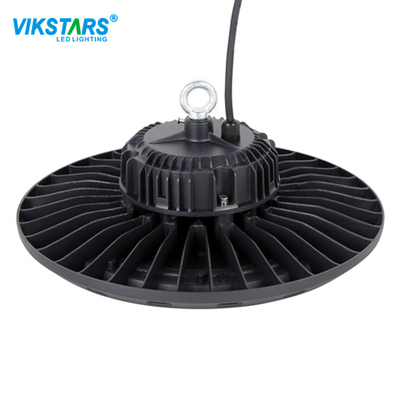

1. The weight of this UFO High bay is precisely designed, not too light, just enough to support heat dissipation for full power, Not too heavy, will not waste money on excess aluminum, so it is a very Cost-effective full power UFO High bay.

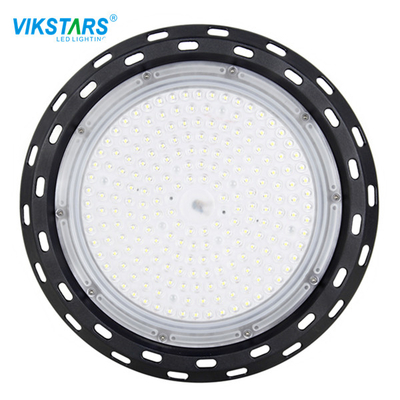

2. We designed 2 lens for option, usually we use granular lens, looks firm and textured, if higher lumen needed, we can use ring lens, with this lens can reach 150 - 160 lm/w.
3. We can customize labels, manual, color box or cartons, according to clients requirement, usually we require MOQ: 500 pcs for package customize, for each lamp.
| Product Name | high bay | ||||
|
Model No
|
VS-UFO-C05
|
VS-UFO-C10
|
VS-UFO-C15
|
VS-UFO-C20
|
VS-UFO-C24
|
|
Power
|
50W
|
100W
|
150W
|
200W
|
240W
|
|
LED Qty
|
98 LEDs
|
140 LEDs
|
210 LEDs
|
280 LEDs
|
280 LEDs
|
|
Size
|
Ф240*150mm
|
Ф288*150mm
|
Ф340*165mm
|
Ф390*195mm
|
Ф390*225mm
|
|
Package
|
27*27*15cm
|
32*32*15cm
|
37*37*17cm
|
46*46*22cm
|
46*46*25cm
|
|
NW
|
1.5kg
|
2.1kg
|
3.0kg
|
4.6kg
|
6.2kg
|
| Voltage | 85 - 265V / 277V | ||||
| LED Type | SMD 3030 LEDs | ||||
| C.R.I | >70Ra | ||||
| Lumen Efficiency | 100 - 150 lm / w | ||||
| IP Rating | IP65 | ||||
| Color Temp | 4000K | ||||
| Working Temp | -20℃ - 50℃ | ||||
| Beam Angle | 60 / 90 / 120 Degree | ||||
| Installation | Hook / Bracket | ||||
| Lifespan | >50000 hrs | ||||
| Warranty | 2 - 5years | ||||
| Application | Garage, Factory, indoor sports field,badminton court Lighting | ||||
| Materials | Aluminum heat sink, PC lens, Stainless screws, waterproof rubber ring, waterproof connector | ||||
Q1. Does VS offer guarantee for the high bay light ?
A: Yes, we offer 2-5 years warranty to our products.
Q2. How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q3. How does VS proceed an order for high bay light ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on lamp ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
