| Brand Name: | VS |
| Model Number: | VS-FHB-A |
| MOQ: | 20 |
| Price: | Negotiable |
| Packaging Details: | ITEM: VS-FHB-A20 N.W/pc: 3.9kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Advantages:
1. For this lamp, the wire between the driver and PCB, will go through the whole in the middle of the aluminum fin, and the temperature of the fin is high, so the wire is easy to be aged , to avoid the wire been aged too fast, we will put on the protective tube over the wires, but to save cost, some cheaper fin High bay will save or skip this craft.
2. Our most light are with CE ( EMC , LVD ) and RoHs certificates, some also are CB, IEC, listed , if projects require other certificates, we can also support clients to do the required testing, to get the certificates from our side.
3. We can customize labels, manual, color box or cartons, according to clients requirement, usually we require MOQ: 500 pcs for package customize, for each lamp.
Specification:

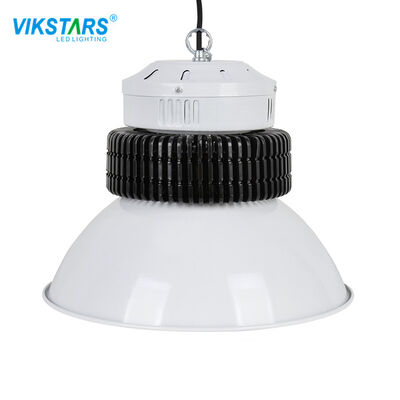

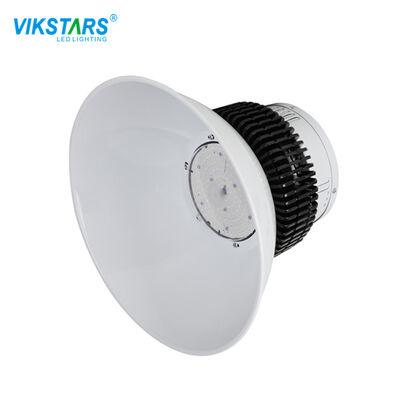

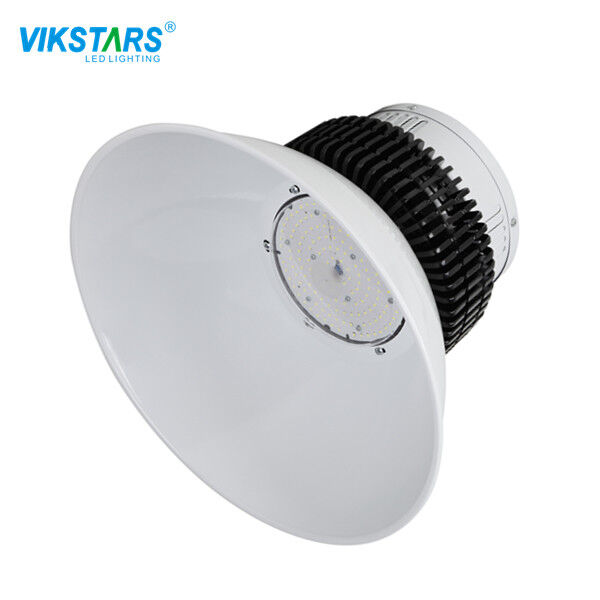

| Product Name | High Bay Light With Aluminum Reflector | |||
|
Model No
|
VS-FHB-A10
|
VS-FHB-A15
|
VS-FHB-A20
|
VS-FHB-A25
|
|
Power
|
100W
|
150W
|
200W
|
250W
|
| Lumens | 10000-13000lm+ | 15000-19500lm+ | 20000-26000lm+ | 25000-32500lm+ |
| LED Qty | 120 LEDs | 180 LEDs | 240 LEDs | 300 LEDs |
| Net Weight | 2.60kg | 2.80kg | 3.90kg | 4.20kg |
| Product Size | Ф420*H360mm | Φ420*H370mm | Φ480*H420mm | Ф480*H420mm |
|
Voltage
|
AC85 - 265V
|
|||
|
LED Type
|
SMD 3030
|
|||
|
Efficiency
|
100 - 130lm / w or higher
|
|||
|
C.R.I
|
≥70Ra or ≥80 Ra
|
|||
|
Light Angle
|
60 / 90 / 120 Degree
|
|||
|
Power Factor
|
≥0.9
|
|||
|
IP Rating
|
IP40 Indoor use
|
|||
|
Color Temp
|
4000K
|
|||
|
Working Temp
|
-20℃ - 50℃
|
|||
|
Housecase Color
|
White / Black / Customize
|
|||
|
Lifespan
|
>50000hrs
|
|||
|
Warranty
|
2 / 3 / 4 / 5 years
|
|||
| Application | Warehouse / Parking lot / Factory / Gymnasium lighting | |||
| Material | Fin Aluminum heat sink + reflector | |||
Q1. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2. How does VS proceed an order for Fin High Bay Light ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3. Is it OK to print my logo on light ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Does VS offer guarantee for the Aluminum Reflector Fin High Bay ?
A: Yes, we offer 2-5 years warranty to our products.
|
