| Brand Name: | VIKSTARS |
| Model Number: | VS-SSL-M |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | Export Neutral Carton / VIKSTARS Brand / Customizing Packing |
| Payment Terms: | T/T |

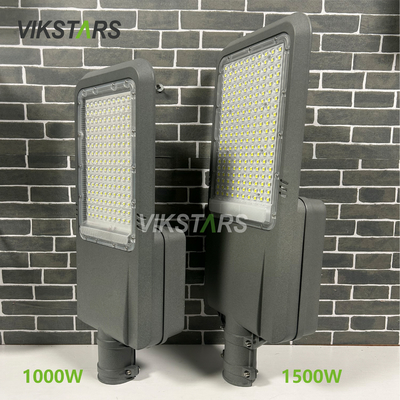

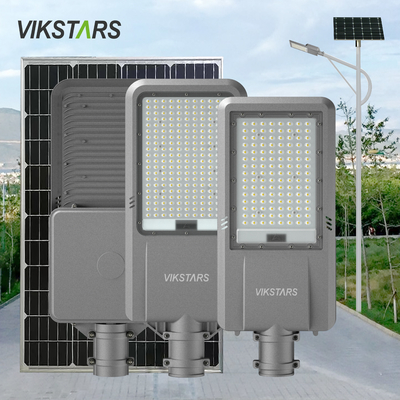

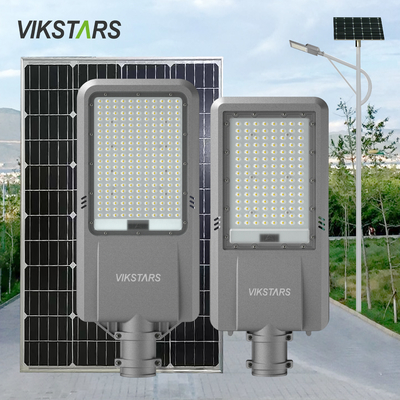

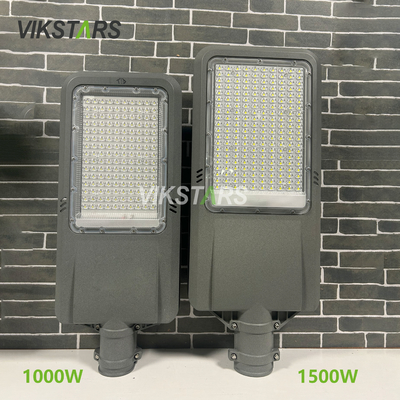

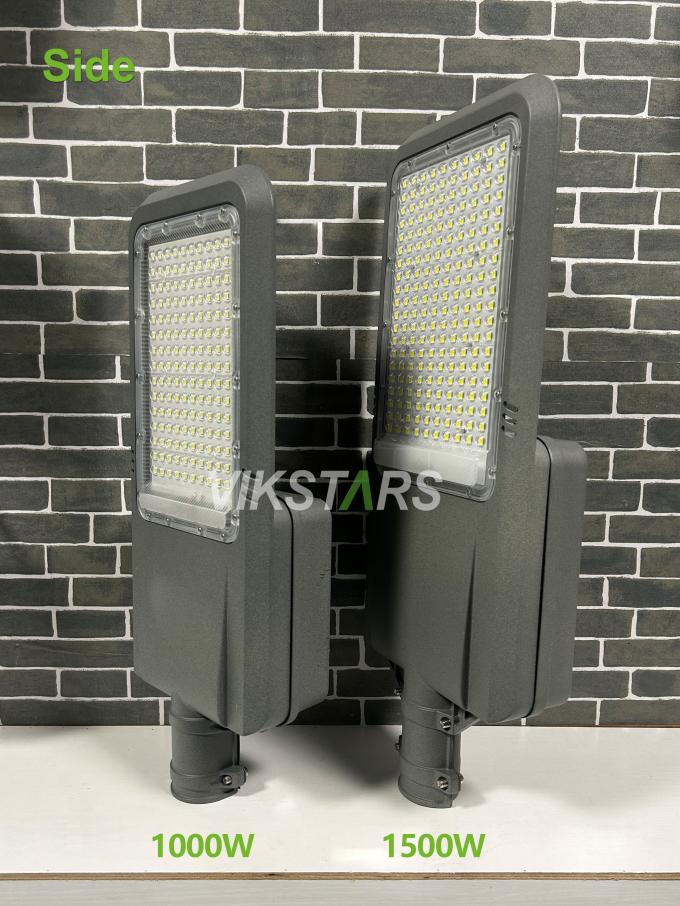

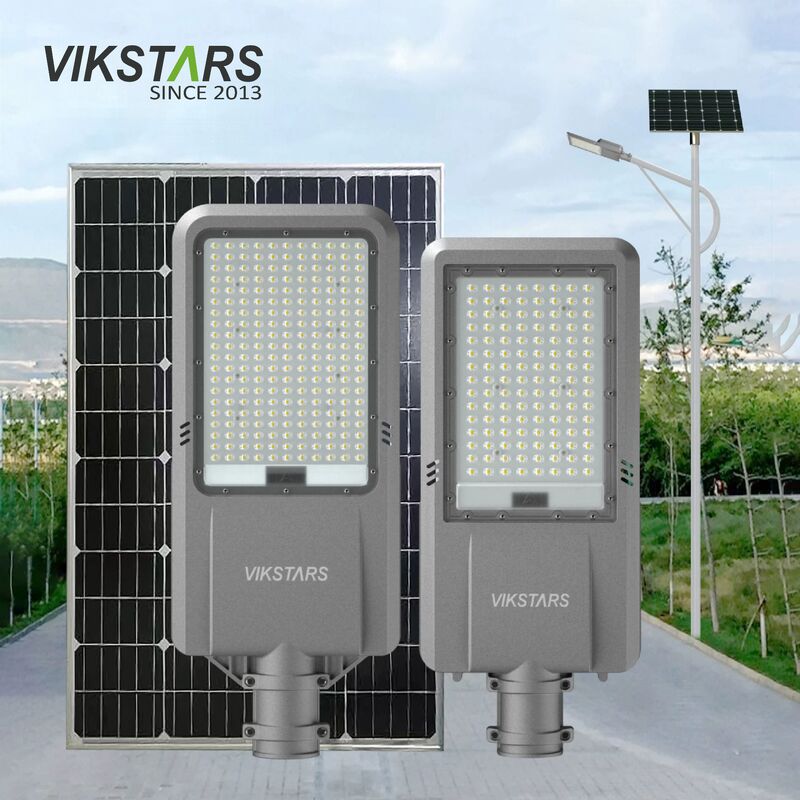

For 7-10m Height Lighting 1000W 1500W Split Solar Powered Street Lights
| LAMP NAME | SPLIT SOLAR STREET LIGHT | ||||
| MODEL NO. | VS-SSL-M05 | VS-SSL-M06 | VS-SSL-M08 | VS-SSL-M10 | VS-SSL-M15 |
| POWER | 500W | 600W | 800W | 1000W | 1500W |
| BATTERY |
3.2V 45AH Lithium |
3.2V 75AH Lithium |
3.2V 100AH Lithium |
3.2V 110AH Lithium |
3.2V 150AH Lithium |
| SOLAR PANEL | Mono 5V 50W | Mono 5V 80W | Mono 18V 100W | Mono 18V 120W | Mono 18V 150W |
| LUMEN | 3000-3300lm | 4000-4300lm | 4800-5100lm | 4800-5100lm | 6400-6700lm |
| LED QTY | 5054*50pcs | 3030*150pcs | 3030*200pcs | ||
| BEAM ANGLE | 120° | ||||
| CCT | Default: Cold White (Warm White / Neutral White for option) | ||||
| C.R.I. | ＞70Ra | ||||
| CHARGE TIME | 4-6 Hours | ||||
| LASTING HOUR | 3-5 Rainy Days | ||||
| INSTALL HEIGHT | 5-6m | 6-7m | 7-8m | 8-9m | 9-10m |
| LIGHTING AREA | 200-250㎡ | 250-300㎡ | 300-350㎡ | 350-400㎡ | 400-450㎡ |
| WORK MODE | Intelligent Light Sensor + Time Control | ||||
| INSTALL WAY |
Pole / Hug Hoop / Wall Install (Accessories not include hug hoop, need to buy additionally) |
||||
| MATERIAL | Die-casting Aluminum Heat Sink + PC Lens / Sand Grey | ||||
| LAMP SIZE | 500*210*85mm | 600*245*90mm | 660*265*100mm | ||
| PANEL SZE | 390*730*20mm | 575*675*20mm | 575*830*20mm | 575*830*20mm | 760*935*25mm |
| PACKING | Export Neutral Carton / VIKSTARS Brand / Customizing Packing | ||||
| WARRANTY | 2 Years Warranty | ||||
| Wall Install | Pole Install | Hug Hoop Install |
|
|
