Product Details:
|
| Application: | Warehouse/Parking Lot/Factory/Gymnasium | Input Voltage(V): | AC85-265V |
|---|---|---|---|
| Keyword: | 150 Watt High Bay Led Lights | Power: | 100W/150W/200W |
| Control Mode: | Switch Control | Lamp Body Material: | Fin Aluminum + PC Cover |
| Beam Angle: | 120 Degree |
Advantages:
1. Usually our this 150 watt high bay led lights , the lumen out put will reach 100 - 130 lm/w, if required, we can make 150 - 160 lm/w .
2. If you want to do some 150 watt high bay led lights changes on this 150 watt high bay led lights , like changing its color, adding auxiliary accessories, laser your logo on it, Something like this, we can support you for free of charge .
3. For this lamp, the wire between the driver and PCB, will go through the whole in the middle of the aluminum fin, and the temperature of the fin is high, so the wire is easy to be aged , to avoid the wire been aged too fast, we will put on the protective tube over the wires, but to save cost, some cheaper fin High bay will save or skip this craft .
Specification:

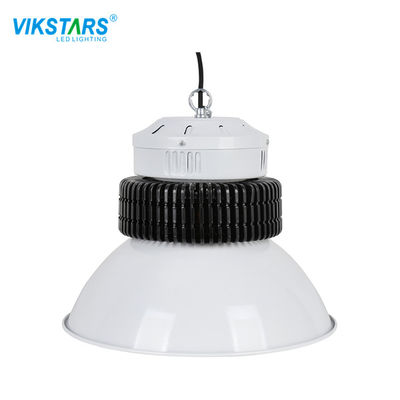

| Product Name | 150 watt high bay led lights | |||
|
Model No
|
VS-FHB-A10
|
VS-FHB-A15
|
VS-FHB-A20
|
VS-FHB-A25
|
|
Power
|
100W
|
150W
|
200W
|
250W
|
| Lumens | 10000-13000lm+ | 15000-19500lm+ | 20000-26000lm+ | 25000-32500lm+ |
| LED Qty | 120 LEDs | 180 LEDs | 240 LEDs | 300 LEDs |
| Net Weight | 2.60kg | 2.80kg | 3.90kg | 4.20kg |
| Product Size | Ф420*H360mm | Φ420*H370mm | Φ480*H420mm | Ф480*H420mm |
|
Voltage
|
AC85 - 265V
|
|||
|
LED Type
|
SMD 3030
|
|||
|
Efficiency
|
100 - 130lm / w or higher
|
|||
|
C.R.I
|
≥70Ra or ≥80 Ra
|
|||
|
Light Angle
|
60 / 90 / 120 Degree
|
|||
|
Power Factor
|
≥0.9
|
|||
|
IP Rating
|
IP40 Indoor use
|
|||
|
Color Temp
|
4000K
|
|||
|
Working Temp
|
-20℃ - 50℃
|
|||
|
Housecase Color
|
White / Black / Customize
|
|||
|
Lifespan
|
>50000hrs
|
|||
|
Warranty
|
2 / 3 / 4 / 5 years
|
|||
| Application | playgrounds ,tunnels, parking lots, public squares, gymnasium, mining, factories | |||
| Material | Fin Aluminum heat sink + reflector | |||
Miss.Lillian
VIKSTARS CO., LIMITED
Tel/wechat: +8615302738576
E-mail: vs602@vikstars.com
Http://www.vikstars.com
Q1. Can I have a sample order for 150 watt high bay led lights ?
A: Yes, VS welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. How does VS proceed an order for 150 watt high bay led lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. Is it OK to print my logo on lamp ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
