Product Details:
|
| Color Temperature(CCT): | 2700K-6500K | Lifespan (hours): | 50000 |
|---|---|---|---|
| Brand Name: | VS/OEM | Lamp Luminous Efficiency(lm/w): | 130-150lm/w, 130-150 |
| Input Voltage(V): | AC85-265V | Working Temperature(℃): | -20 - 50 |
| High Light: | linear high bay led lights 2ft,linear high bay light 150lm/ W,IP65 industrial led linear bay |
||

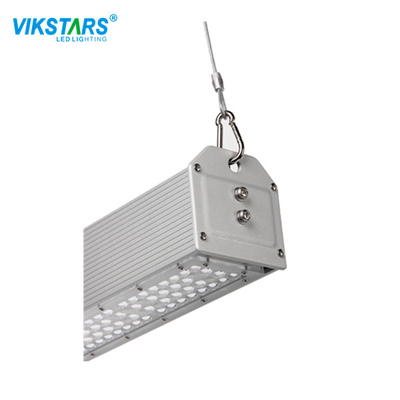

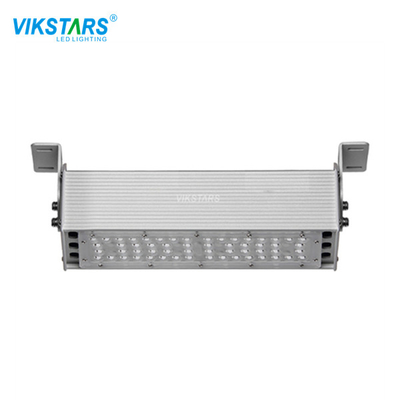

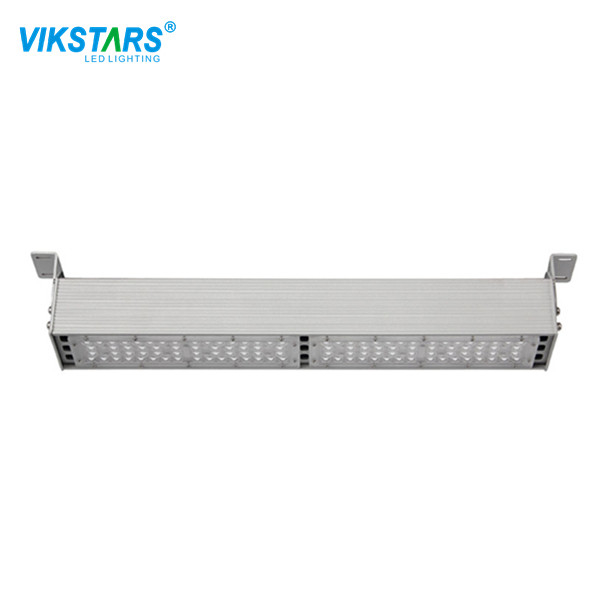

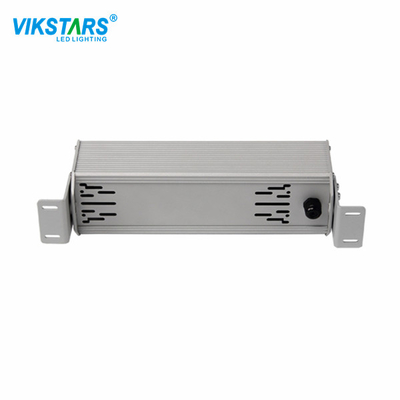

For Workshop Linear High Bay Light 150lm / W IP65 Waterproof
Advantages:
1. This linear high bay`s heat dissipation aluminum is excess, so no matter the driver or LEDs, will have a very few light decay, so more longer lifespan.
2. Strictly quality control, and 100% inspection before shipment, usually the lifespan can reach 35000 - 50000hrs.
3. Usually our this linear high bay light, the lumen out put will reach 100 - 130lm / w, if required, we can make 150- 160lm / w.
| Product Name | Linear High Bay Light | ||||
|
Model No
|
VS-LHB-B05
|
VS-LHB-B10
|
VS-LHB-B15
|
VS-LHB-B20
|
VS-LHB-B25
|
|
Power
|
50W
|
100W
|
150W
|
200W
|
250W
|
| LED Qty | 90pcs | 180pcs | 270pcs | 360pcs | 450pcs |
| Lumens | 6500lm+ | 13000lm+ | 19500lm+ | 26000lm+ | 32500lm+ |
| Net Weight | 1.50kg/pc | 2.90kg/pc | 4.10kg/pc | 5.30kg/pc | 6.60kg/pc |
| Lamp Size | 360*110*165mm | 630*110*165mm | 900*110*165mm | 1165*110*165mm | 1430*110*165mm |
|
Voltage
|
AC85-265V
|
||||
|
LED Type
|
SMD 3030 LEDs
|
||||
|
Efficiency
|
130/150lm/w
|
||||
|
C.R.I
|
≥70Ra
|
||||
|
IP Rating
|
IP65
|
||||
|
Color Temp
|
3000K
|
||||
|
Working Temp
|
-20℃ - 50℃
|
||||
|
Beam Angle
|
30/60/90/30x70°
|
||||
|
Power Factor
|
≥0.9
|
||||
|
Lifespan
|
>50000hrs
|
||||
|
Warranty
|
3/5 years
|
||||
| Application | Warehouse/Tunnel / workshop / garage | ||||
| Lamp Body Material | Die-cast Aluminum + PC lens | ||||
Q1. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2. How does VS proceed an order for Linear High Bay Light ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3. Is it OK to print my logo on lamp ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Does VS offer guarantee for the Linear High Bay Light ?
A: Yes, we offer 2-5 years warranty to our products.
